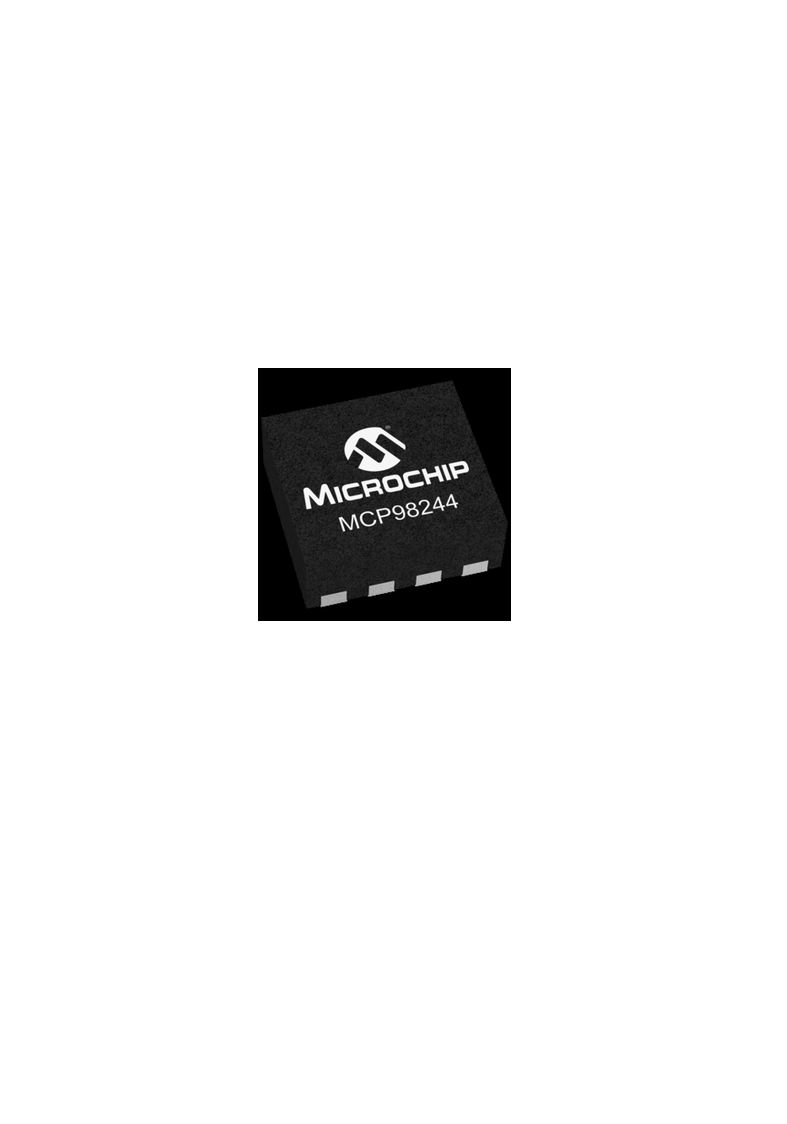

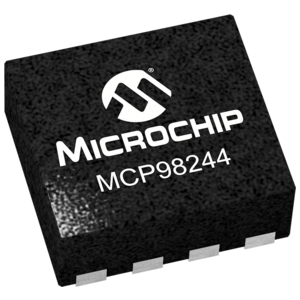

MICROCHIP MCP98244T-BE/MNY 温度传感器芯片, 数字式, ± 1°C, -40 °C, 125 °C, TDFN, 8 引脚
The is a Digital Temperature Sensor that converts temperature from -40 and +125°C to a digital word. The device comes with user-programmable registers that provide flexibility for DIMM temperature-sensing applications. The registers allow user-selectable settings such as Shutdown or Low-Power modes and the specification of temperature Event boundaries. When the temperature changes beyond the specified event boundary limits, the MCP98244 outputs an alert signal at the event pin. The user has the option of setting the temperature Event output signal polarity as either an active-low or active-high comparator output for thermostat operation or as a temperature Event interrupt output for microprocessor-based systems. The MCP98244 EEPROM is designed specifically for DRAM DIMMs Dual In-line Memory Modules Serial Presence Detect SPD.
电源电压DC 2.20V min
工作电压 2.2V ~ 3.6V
供电电流 0.5 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3℃ Max
电源电压 2.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 8
封装 TDFN-8
高度 0.73 mm
封装 TDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Sensing & Instrumentation, 传感与仪器, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
