MAXIM INTEGRATED PRODUCTS MAX31820PARMCR+ 温度传感器芯片, 串行控制, 数字式, ± 2°C, -55 °C, 125 °C, TO-92, 3 引脚

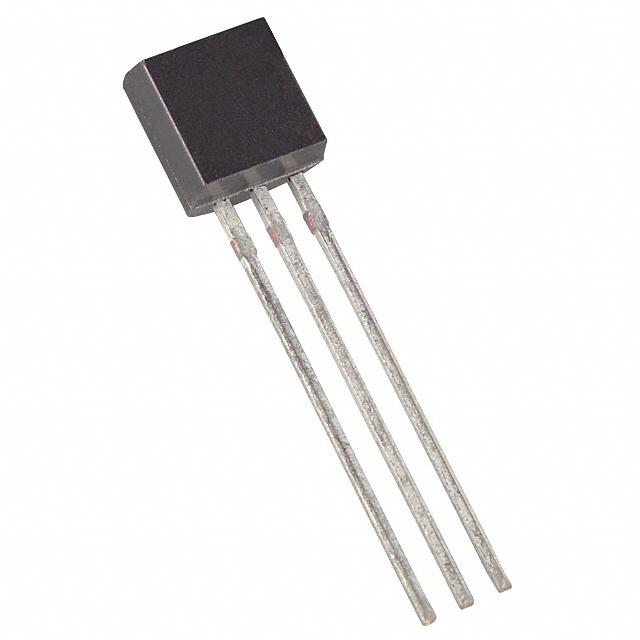

The is a 1-wire, parasite power ambient temperature sensor in 3 pin TO-92 package. It provides 9bit to 12bit celsius temperature measurements with ±0.5°C accuracy over 10°C to 45°C temperature range. The device communicates over 1-wire bus that and requires only one data line and ground for communication with a central microprocessor. In addition, the device derives power directly from data line parasite power which eliminates need for an external power supply. The form factor of TO-92 package allows device to be placed above board and thus measures ambient temperature of a system as opposed to board temperature that surface mount package would measure. Each MAX31820PAR has a unique 64bit serial code which allows multiple MAX31820PAR devices to function on same 1-wire bus. It is used in temperature monitoring systems inside buildings, equipment or machinery, thermostatic controls, thermometers and any thermally sensitive system.
电源电压DC 3.00V min
针脚数 3
工作温度Max 100 ℃
工作温度Min -55 ℃
精度 ±2 ℃
电源电压 3V ~ 3.7V
电源电压Max 3.7 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 3

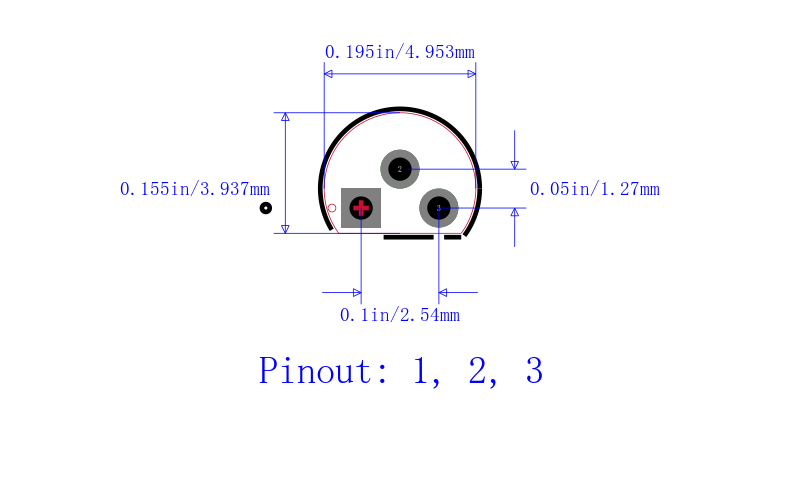

封装 TO-226-3
封装 TO-226-3
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, 传感与仪器, HVAC, 消费电子产品, 自动化与过程控制, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX31820PARMCR+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
TMP04FT9Z 亚德诺 | 功能相似 | MAX31820PARMCR+和TMP04FT9Z的区别 |
