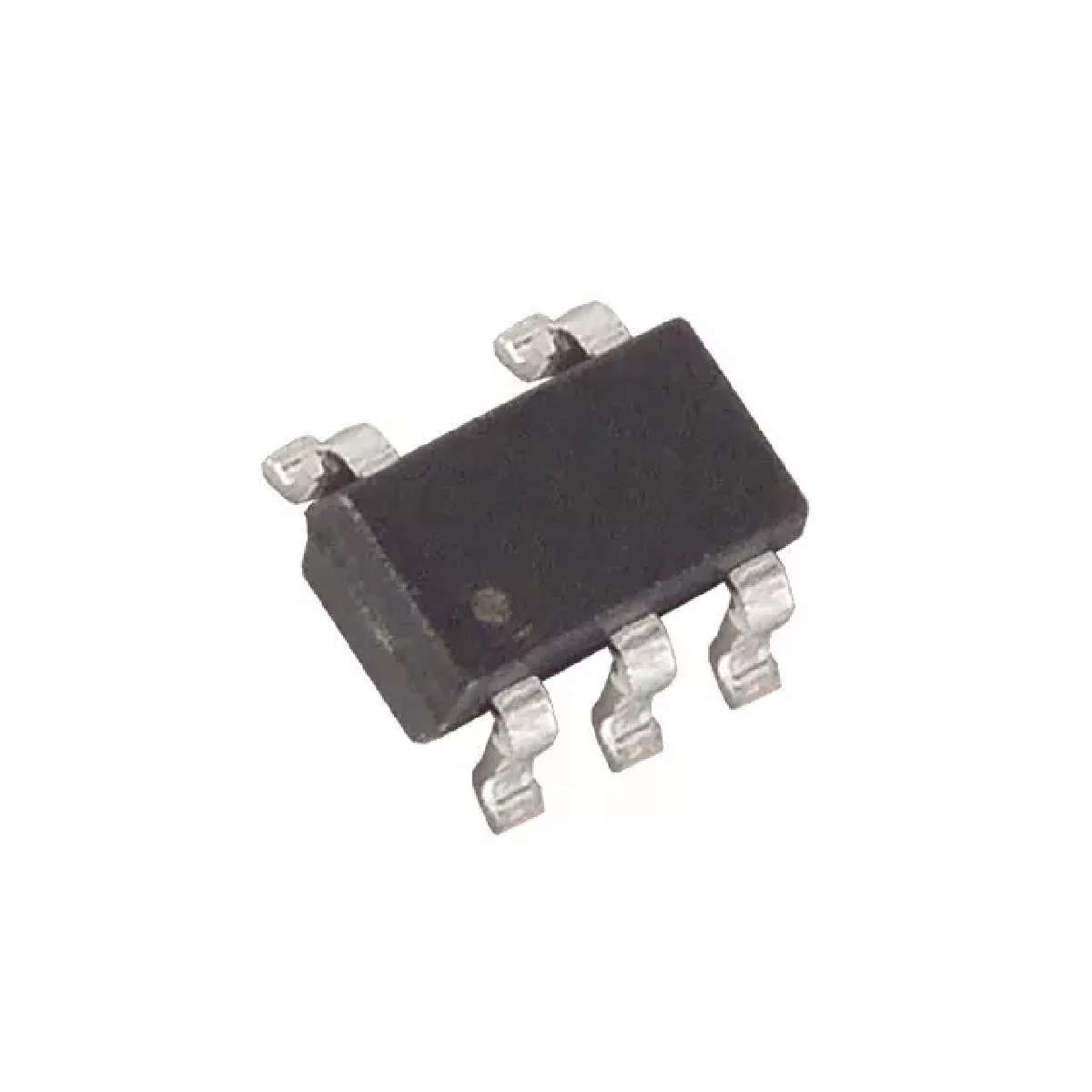

MAXIM INTEGRATED PRODUCTS MAX6608IUK+T 温度传感器芯片, 精准, 模拟, ± 2°C, -20 °C, 85 °C, SOT-23, 5 引脚
The is a low voltage analogue temperature sensor in 5 pin SOT-23 package. The device has a +1.8V to +3.6V supply voltage range and 8µA supply current over the -20°C to +85°C temperature range. Accuracy is ±0.6°C typ from TA = +20°C to +50°C and is ±0.7°C typ from TA = 0°C to +70°C. The MAX6607 output voltage depends on its die temperature and has a slope of 10mV/°C and an offset of 500mV at 0°C.
电源电压DC 1.80V min
针脚数 5
耗散功率 245 mW
工作温度Max 125 ℃
工作温度Min 55 ℃
精度 ±1.5 ℃
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, Portable Devices, 便携式器材, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6608IUK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6608IUK-T 美信 | 完全替代 | MAX6608IUK+T和MAX6608IUK-T的区别 |
