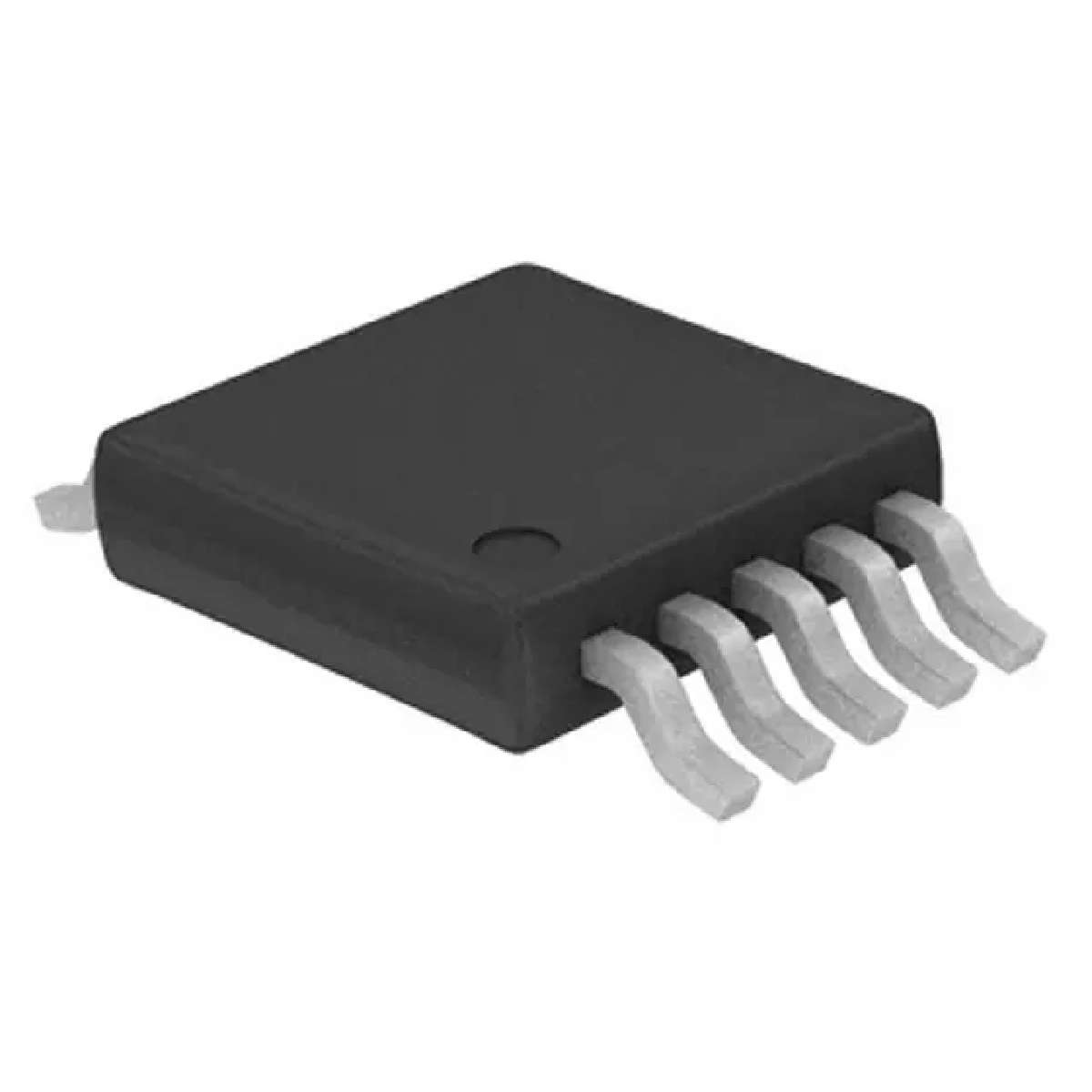

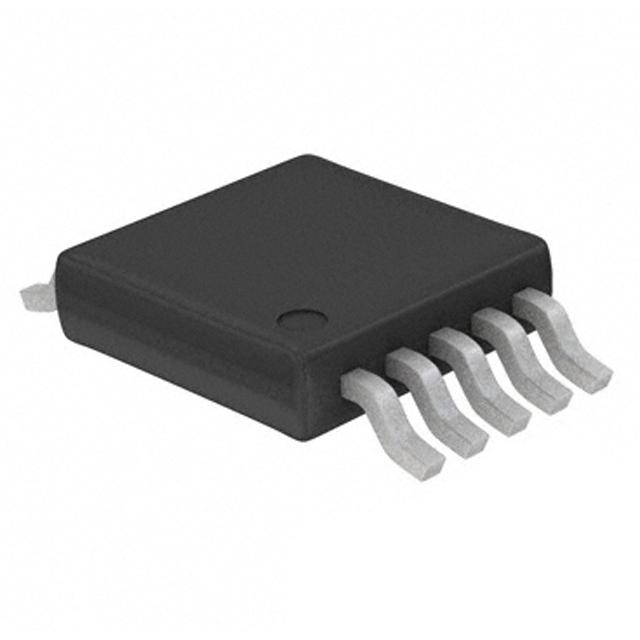

MAXIM INTEGRATED PRODUCTS MAX6670AUB60+ 温度传感器芯片, 温度开关, 漏极开路, ± 1°C, -40 °C, 125 °C, µMAX, 10 引脚
The is a remote temperature switch with integrated fan controller/driver in 10 pin µMAX package. This remote junction thermal switch with an internal power transistor drives a cooling fan rated for supply voltages up to +12V and 250mA. It measures temperature of an external P-N junction typically a diode connected transistor and turn on fan power switch when remote temperature rises above factory programmed threshold. The MAX6670 is simple drop-in fan control solutions for variety of systems due to self contained and requiring no software development. It has an open drain active-low WARN output that goes active when remote temperature exceeds factory programmed fan activation threshold by +15°C. The device also has an open-drain active-low OT output that goes active when remote temperature exceeds factory programmed threshold by +30°C. It is used in network switches, PC power supplies, laboratory instruments, card racks, temperature alarms and fan controls.
电源电压DC 3.00V min
供电电流 110 µA
针脚数 10
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 ℃
电源电压 3.3 V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 10
封装 uMAX-10
封装 uMAX-10
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
制造应用 传感与仪器, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
