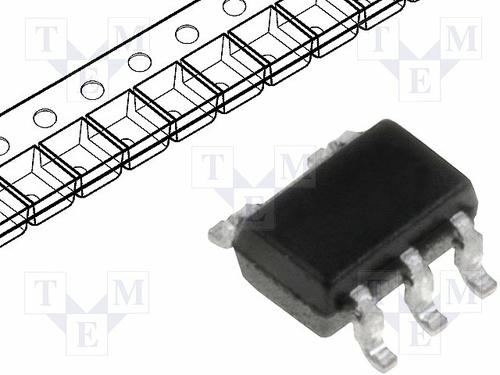

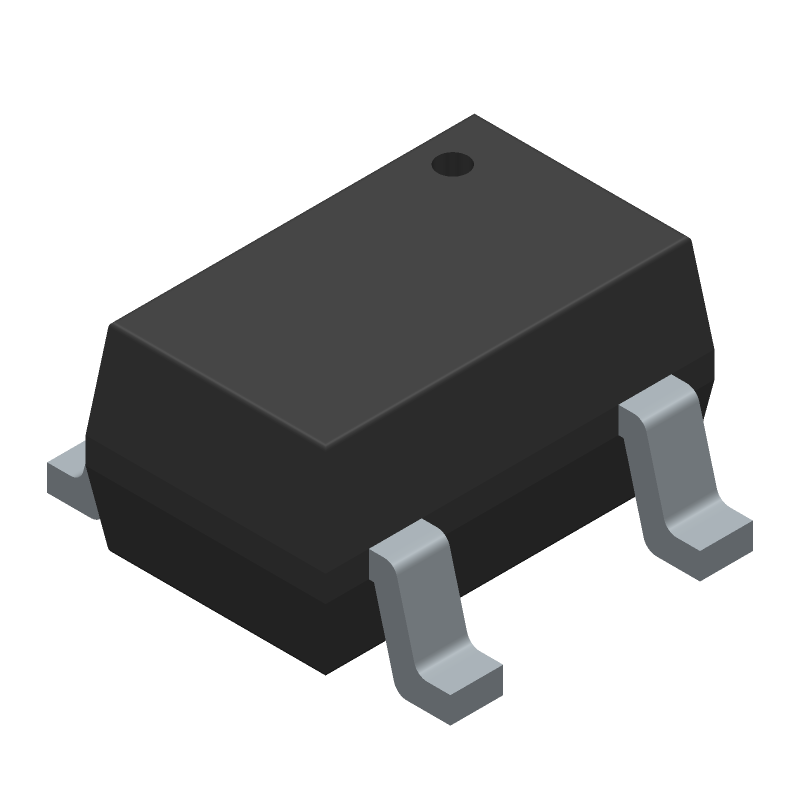

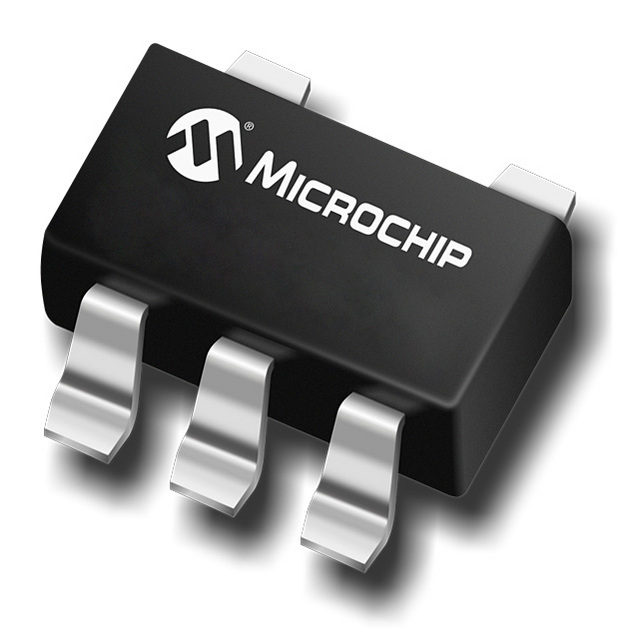

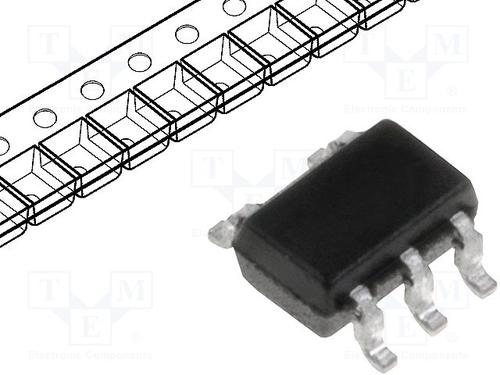

MICROCHIP MCP9701T-E/LT 温度传感器芯片, AEC-Q100, 电压, ± 2°C, -40 °C, +125 °C, SC-70, 5 引脚
The is a Linear Active Thermistor IC which converts temperature to analogue voltage. The device does not require an additional signal-conditioning circuit. The voltage output pin VOUT can be directly connected to the ADC input of a microcontroller. The device temperature coefficients are scaled to provide a 1°C/bit resolution for an 8-bit ADC with a reference voltage of 5V. When measuring relative change in temperature from +25°C, an accuracy of ±1°C typical can be realized from 0 to +70°C. This accuracy can also be achieved by applying system calibration at +25°C. In addition, this family is immune to the effects of parasitic capacitance and can drive large capacitive loads.
- .
- 19.5mV/°C typical Optimized for ADC
- .
- Optimized to drive large capacitive loads
- .
- 6µA typical Low operating current
电源电压DC 3.10V min
工作电压 2.3V ~ 5.5V
输出电压 400 mV
输出电流 100 µA
供电电流 6 μA
针脚数 5
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 ℃
电源电压 3.1V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3.1 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
长度 3.05 mm
封装 SC-70-5
工作温度 -40℃ ~ 125℃
温度系数 19.5 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Sensing & Instrumentation, 系统监控, 便携式器材, 电源管理, Consumer Electronics, Computers & Computer Peripherals, Power Management, System Monitoring, 传感与仪器, 消费电子产品, Portable Devices, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP9701T-E/LT Microchip 微芯 | 当前型号 | 当前型号 |
MCP9701-E/TO 微芯 | 类似代替 | MCP9701T-E/LT和MCP9701-E/TO的区别 |
