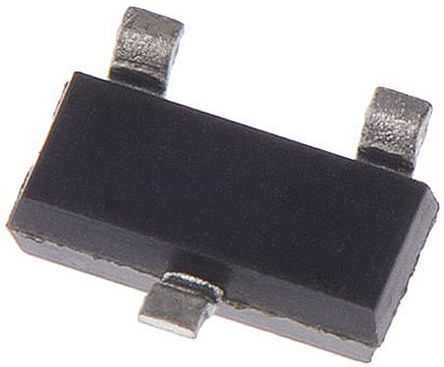

ON SEMICONDUCTOR MMBT2222ALT3G 双极性晶体管, NPN, 40V SOT-23, 整卷
通用 NPN ,最大 1A,On Semiconductor
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
欧时:
ON Semiconductor MMBT2222ALT3G , NPN 晶体管, 600 mA, Vce=40 V, HFE:40, 100 MHz, 3引脚 SOT-23封装
立创商城:
MMBT2222ALT3G
得捷:
TRANS NPN 40V 0.6A SOT23-3
贸泽:
双极晶体管 - 双极结型晶体管BJT SS SOT23 GP XSTR NPN 30V
e络盟:
单晶体管 双极, NPN, 40 V, 300 MHz, 225 mW, 600 mA, 40 hFE
艾睿:
Design filters, receivers, transmitters, op-amps, power supplies, and control circuits with this versatile NPN MMBT2222ALT3G GP BJT from ON Semiconductor. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 300 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 6 V.
Allied Electronics:
Transistor NPN 40V 600mA SOT23
安富利:
Trans GP BJT NPN 40V 0.6A 3-Pin SOT-23 T/R
Chip1Stop:
Trans GP BJT NPN 40V 0.6A 300mW Automotive 3-Pin SOT-23 T/R
Verical:
Trans GP BJT NPN 40V 0.6A Automotive 3-Pin SOT-23 T/R
Newark:
# ON SEMICONDUCTOR MMBT2222ALT3G Bipolar BJT Single Transistor, General Purpose, NPN, 40 V, 300 MHz, 225 mW, 600 mA, 100 hFE
Win Source:
TRANS NPN 40V 0.6A SOT-23
DeviceMart:
TRANS NPN GP 40V 600MA SOT-23
频率 300 MHz
额定电压DC 40.0 V
额定电流 600 mA
针脚数 3
极性 NPN
耗散功率 225 mW
击穿电压集电极-发射极 40 V
集电极最大允许电流 0.6A
最小电流放大倍数hFE 100 @150mA, 10V
额定功率Max 300 mW
直流电流增益hFE 100
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.01 mm
封装 SOT-23-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBT2222ALT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMBT2222ALT1G 安森美 | 类似代替 | MMBT2222ALT3G和MMBT2222ALT1G的区别 |
SMMBT2222ALT1G 安森美 | 类似代替 | MMBT2222ALT3G和SMMBT2222ALT1G的区别 |
SMMBT2222ALT3G 安森美 | 类似代替 | MMBT2222ALT3G和SMMBT2222ALT3G的区别 |
