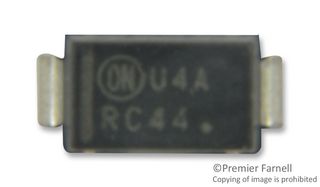

ON SEMICONDUCTOR MURA105T3G 快速/超快二极管, 单, 50 V, 1 A, 875 mV, 30 ns, 50 A
反向电压VrReverse Voltage | 50V
\---|---
平均整流电流IoAverAge Rectified Current | 1A
最大正向电压降VFForward VoltageVf | 0.875V/875mV
反向恢复时间TrrReverse Recovery Time | 30nS
最大耗散功率PdPower dissipation |
Description & Applications | Surface Mount Ultrafast Power Rectifiers Short reverse recovery time
描述与应用 | 表面贴装 超快功率整流器 小型紧凑的表面贴装封装,带J-本德信息 •矩形包装的自动化处理 •高温玻璃钝化结 •低正向压降(0.66伏特A,TJ = 150°C Max@1.0)
立创商城:
Power Rectifier, Ultra-Fast Recovery, Switch-mode, 1 A, 50 V
得捷:
DIODE GEN PURP 50V 2A SMA
e络盟:
快速/超快二极管, 50 V, 1 A, 单, 875 mV, 30 ns, 50 A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode MURA105T3G rectifier from ON Semiconductor. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 2 A.
安富利:
Diode Switching 50V 2A 2-Pin SMA T/R
Chip1Stop:
Diode Switching 50V 2A Automotive 2-Pin SMA T/R
Verical:
Rectifier Diode Switching 50V 2A 30ns 2-Pin SMA T/R
Newark:
# ON SEMICONDUCTOR MURA105T3G Fast / Ultrafast Diode, 50 V, 1 A, Single, 875 mV, 30 ns, 50 A
Win Source:
DIODE GEN PURP 50V 2A SMA
额定电压DC 50.0 V
额定电流 2.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
正向电压 875mV @1A
极性 Standard
热阻 216 ℃/W
反向恢复时间 30 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 875 mV
正向电流Max 2 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
高度 2 mm
封装 DO-214AC
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MURA105T3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MURA105T3 安森美 | 完全替代 | MURA105T3G和MURA105T3的区别 |
S1A-E3/61T 威世 | 功能相似 | MURA105T3G和S1A-E3/61T的区别 |
S1A-E3/5AT 威世 | 功能相似 | MURA105T3G和S1A-E3/5AT的区别 |
