MSS1P3U-M3/89A

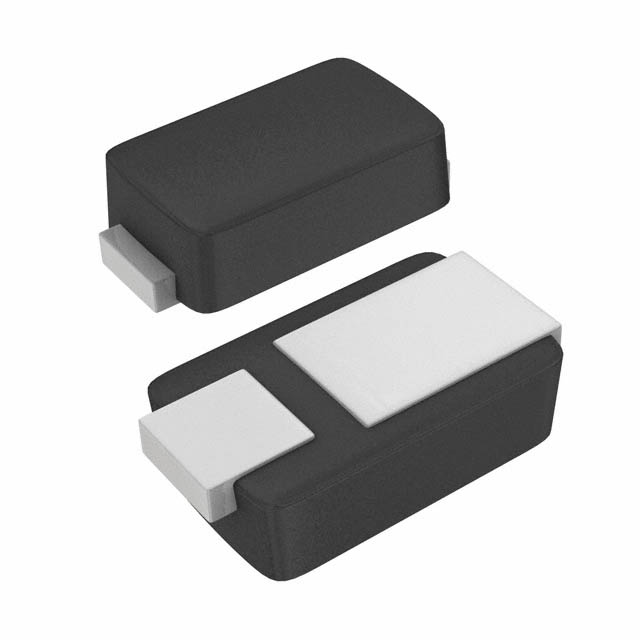

VISHAY  MSS1P3U-M3/89A  二极管, 肖特基, 30V, 1A, MicroSMP

Ultra Low VF Surface Mount Schottky Barrier Rectifiers

FEATURES

• Very low profile - typical height of 0.65 mm

• Ideal for automated placement

• Low forward voltage drop, low power losses

• Caution: High reverse leakage

• Meets MSL level 1, per  J-STD-020, LF maximum peak of 260 °C

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

•Halogen-free according to IEC 61249-2-21 definition

APPLICATIONS

Application designed and qualified for hard disc driver where the VFperformance and size are required. HTIR is not a concern.
