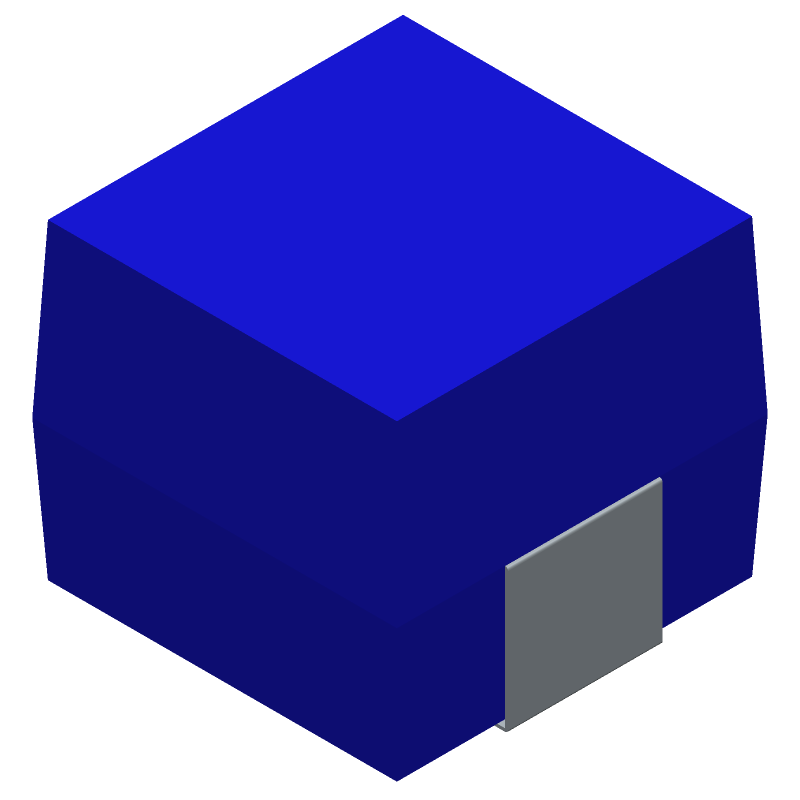

MSS1210-683MED

COILCRAFT  MSS1210-683MED  表面贴装功率电感器, AEC-Q200 MSS1210系列, 68 µH, ± 20%, 屏蔽, 0.084 ohm, 4.3 A

The is a surface mount shielded Power Inductor with ferrite core. This inductor features matte tin over nickel over phosphor bronze terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor also features moisture sensitivity level MSL of 1, failures in time FIT/mean time between failures MTBF is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. DC current at which the inductance drops the specified amount from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0ADC using an Agilent/HP 4263B LCR meter or equivalent.

.

Low DCR and excellent current handling

.

Halogen-free
