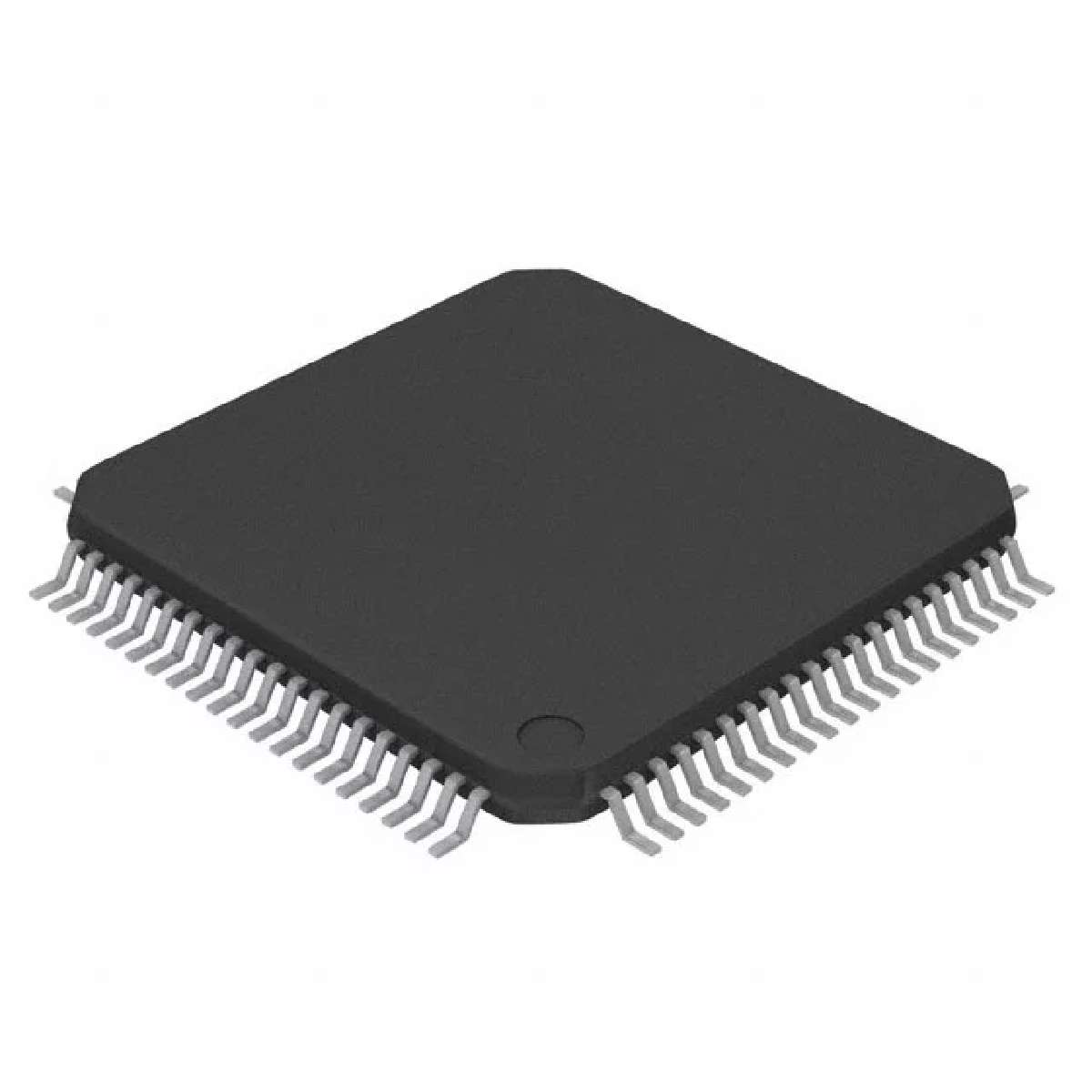

TEXAS INSTRUMENTS MSP430F5437AIPNR 微控制器, 16位, 混合信号, MSP430F5xx, 25 MHz, 256 KB, 16 KB, 80 引脚, LQFP
The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 3.5µs typical. The device configurations with three 16-bit timer, 12-bit A/D converter, three-channel internal DMA, up to four universal serial communication interfaces USCIs, a 32-bit hardware multiplier and 67 general-purpose I/O pins. This device operates at a maximum frequency of 25MHz.
频率 25 MHz
电源电压DC 1.80V min
针脚数 80
时钟频率 25.0 MHz
RAM大小 16 KB
位数 16
FLASH内存容量 256 KB
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 67 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 80
封装 LQFP-80
高度 1.45 mm
封装 LQFP-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电机驱动与控制, 测试与测量, 消费电子产品, 时钟与计时, 传感与仪器, 便携式器材, 计量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F5437AIPNR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F5437AIPN 德州仪器 | 完全替代 | MSP430F5437AIPNR和MSP430F5437AIPN的区别 |
MSP430F5418AIPN 德州仪器 | 类似代替 | MSP430F5437AIPNR和MSP430F5418AIPN的区别 |
MSP430F5418AIPNR 德州仪器 | 类似代替 | MSP430F5437AIPNR和MSP430F5418AIPNR的区别 |
