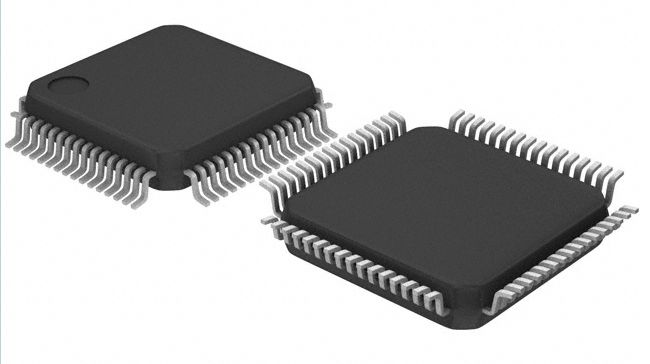

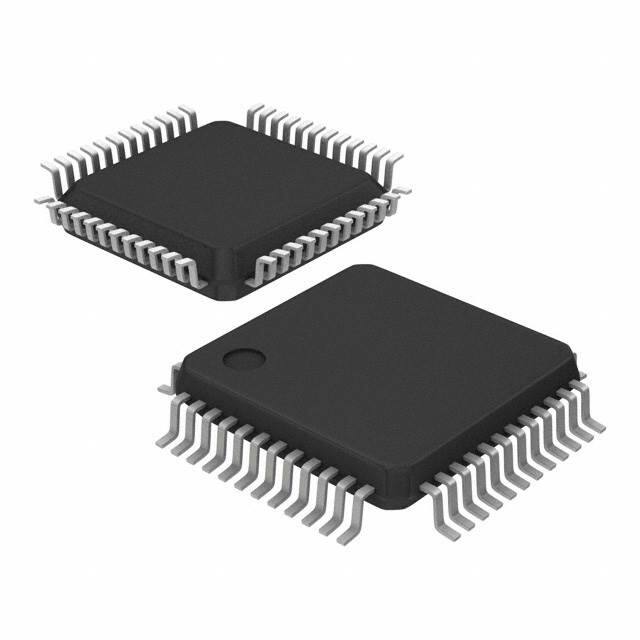

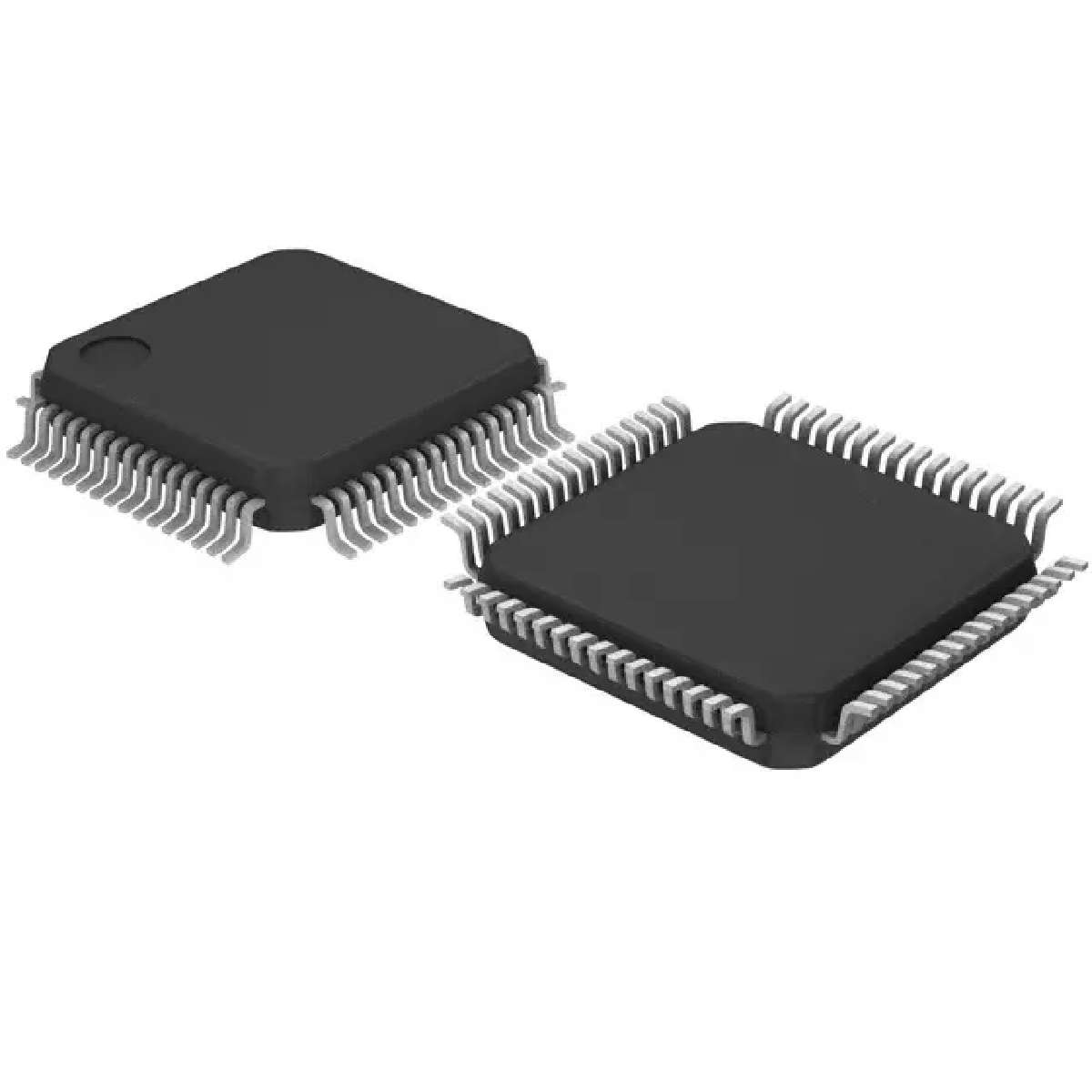

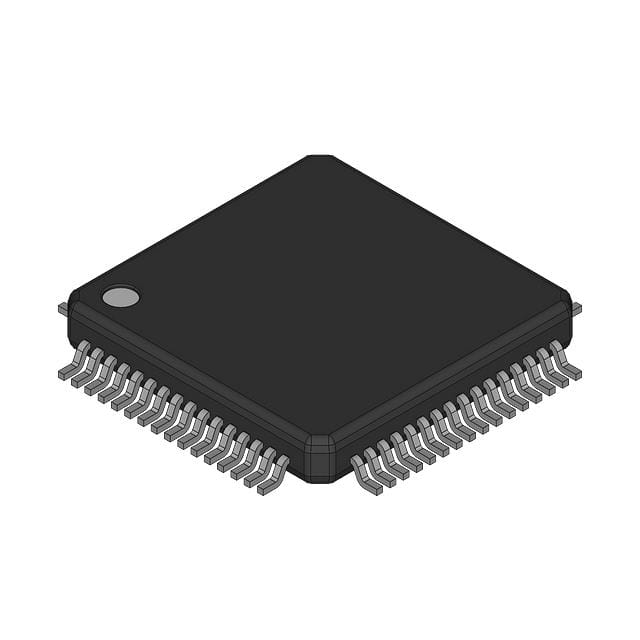

TEXAS INSTRUMENTS MSP430F4152IPMR 微控制器, 16位, 混合信号, MSP430F4xx, 8 MHz, 16 KB, 512 Byte, 64 引脚, LQFP
The Texas Instruments ultra low-power microcontroller consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generator that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6 µs
频率 8 MHz
电源电压DC 1.80V min
针脚数 64
时钟频率 8.00 MHz
RAM大小 512 b
位数 16
FLASH内存容量 16 KB
UART数量 1
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 56 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
长度 10 mm
宽度 10 mm
高度 1.45 mm
封装 LQFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计量, 自动化与过程控制, 无线, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F4152IPMR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F4132IPM 德州仪器 | 类似代替 | MSP430F4152IPMR和MSP430F4132IPM的区别 |
MSP430F4152IPM 德州仪器 | 类似代替 | MSP430F4152IPMR和MSP430F4152IPM的区别 |
MSP430F4132IPMR 德州仪器 | 类似代替 | MSP430F4152IPMR和MSP430F4132IPMR的区别 |
