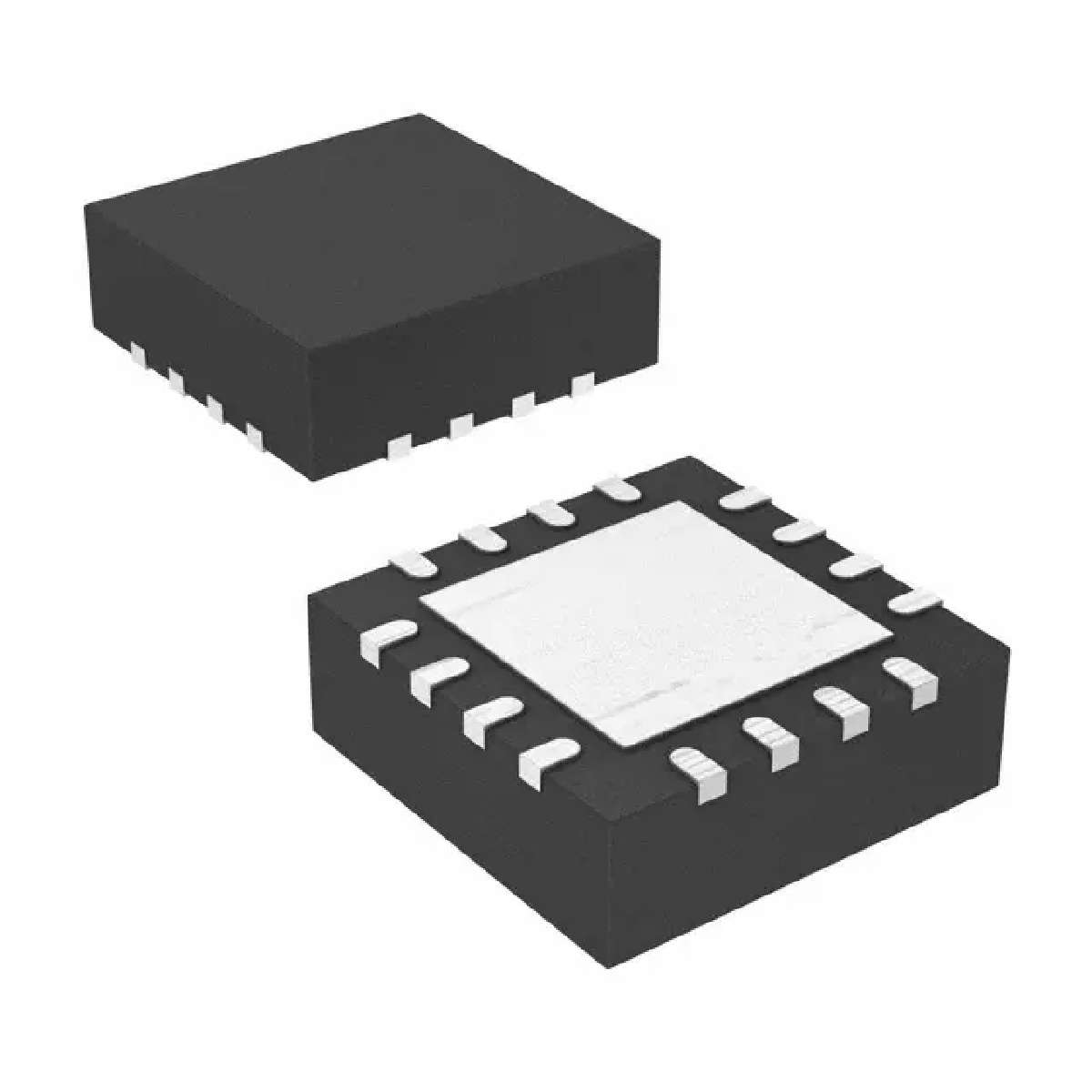

TEXAS INSTRUMENTS MSP430G2402IRSA16R 芯片, MCU, 16位, 8KB, 闪存, 16QFN
* Low Supply Voltage Range: 1.8 V to 3.6 V * Ultra-Low Power Consumption * Active Mode: 220 µA at 1 MHz, 2.2 V * Standby Mode: 0.5 µA * Off Mode RAM Retention: 0.1 µA * Five Power-Saving Modes * Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs * 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time * Basic Clock Module Configurations * Internal Frequencies up to 16 MHz With Four Calibrated Frequencies * Internal Very-Low-Power Low-Frequency LF Oscillator * 32-kHz Crystal * External Digital Clock Source * One 16-Bit Timer_A With Three Capture/Compare Registers * Up to 16 Capacitive-Touch Enabled I/O Pins * Universal Serial Interface USI Supporting SPI and I2C * 10-Bit 200-ksps Analog-to-Digital A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan MSP430G2x32 Only * Brownout Detector * Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse * On-Chip Emulation Logic With Spy-Bi-Wire Interface * Package Options * TSSOP: 14 Pin, 20 Pin * PDIP: 20 Pin * QFN: 16 Pin
频率 16 MHz
电源电压DC 1.80V min
针脚数 16
时钟频率 16.0 MHz
RAM大小 256 b
位数 16
FLASH内存容量 8 KB
FRAM内存容量 0 B
输入/输出数 10 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 16

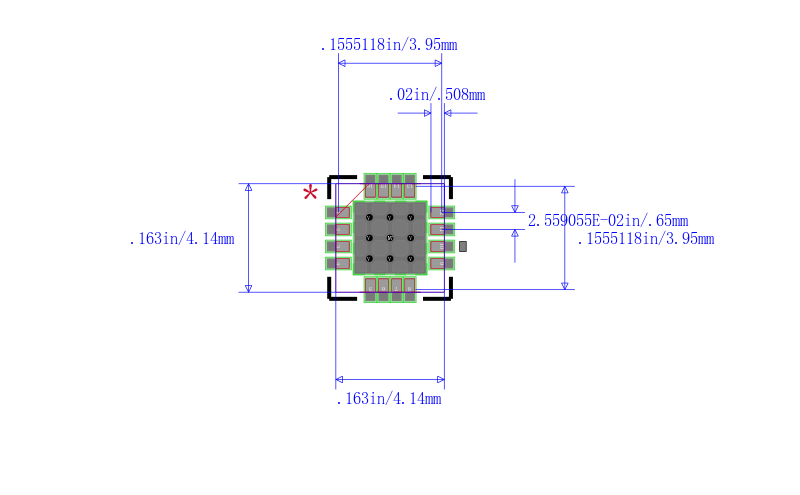

封装 QFN-16
高度 0.95 mm
封装 QFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430G2402IRSA16R TI 德州仪器 | 当前型号 | 当前型号 |
MSP430G2402IRSA16T 德州仪器 | 类似代替 | MSP430G2402IRSA16R和MSP430G2402IRSA16T的区别 |
MSP430G2302IRSA16T 德州仪器 | 类似代替 | MSP430G2402IRSA16R和MSP430G2302IRSA16T的区别 |
MSP430G2302IRSA16R 德州仪器 | 功能相似 | MSP430G2402IRSA16R和MSP430G2302IRSA16R的区别 |
