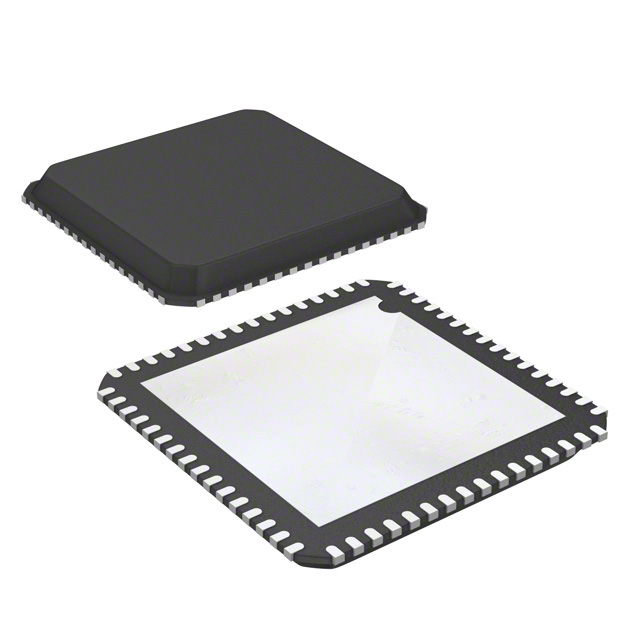

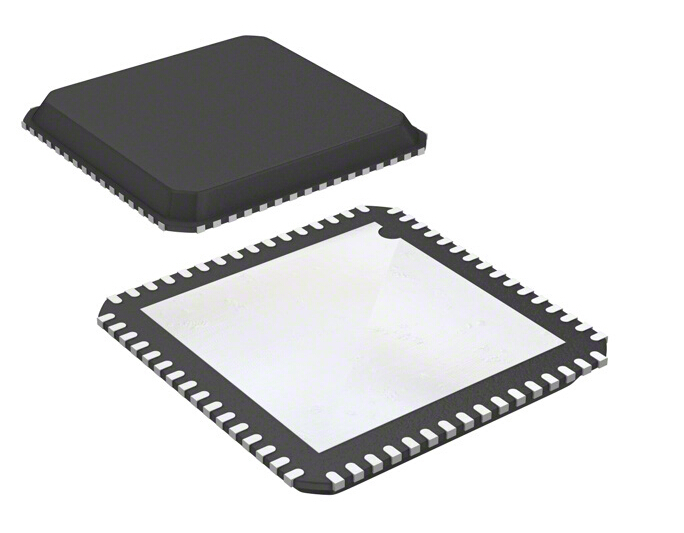

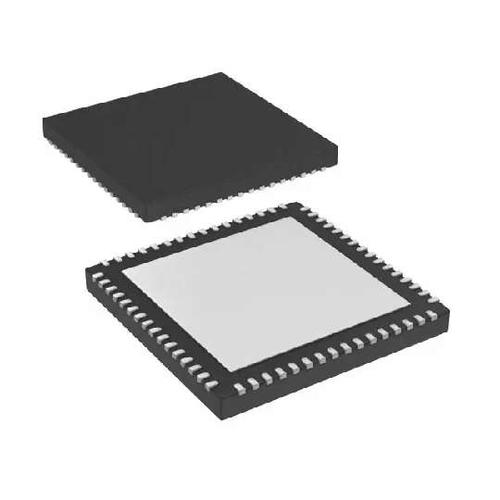

TEXAS INSTRUMENTS MSP430F5528IRGCR 微控制器, 16位, 混合信号, MSP430F5xx, 25 MHz, 128 KB, 10 KB, 64 引脚, VQFN
The is a 16-bit Ultra-low-power Microcontroller consists of several device features peripheral sets targeted for a variety of applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The microcontroller features a powerful 16-bit RISC CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the devices to wake up from low-power modes to active mode in 3.5µs typical. The MSP430F5528 microcontroller includes all of these peripherals but have 47 I/O pins.
ESD sensitive device, take proper precaution while handling the device.
频率 25 MHz
电源电压DC 1.80V min
针脚数 64
时钟频率 25.0 MHz
RAM大小 10 KB
位数 16
FLASH内存容量 128 KB
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 47 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
引脚数 64
封装 VQFN-64
封装 VQFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 测试与测量, 传感与仪器, 信号处理, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430F5528IRGCR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430F5310IRGCT 德州仪器 | 类似代替 | MSP430F5528IRGCR和MSP430F5310IRGCT的区别 |
MSP430F5510IRGCT 德州仪器 | 类似代替 | MSP430F5528IRGCR和MSP430F5510IRGCT的区别 |
