MSP430F2274IDAR

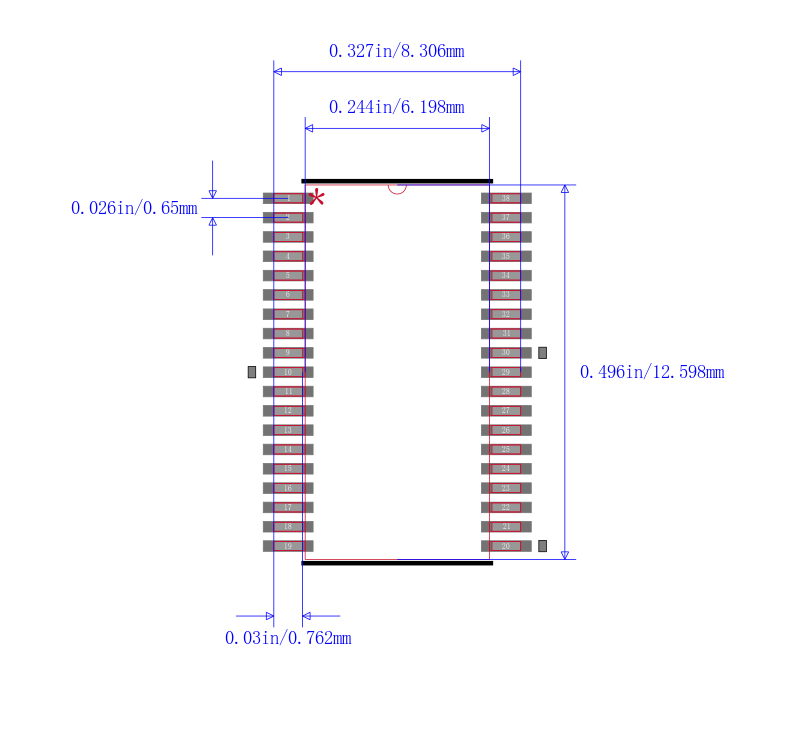

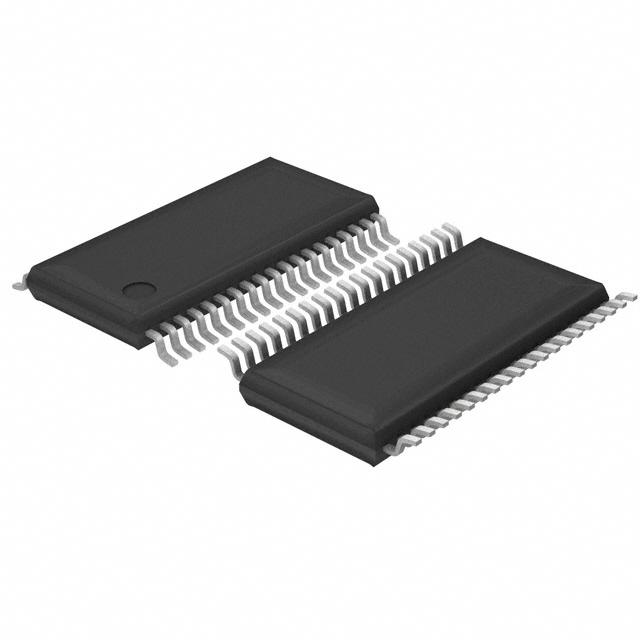

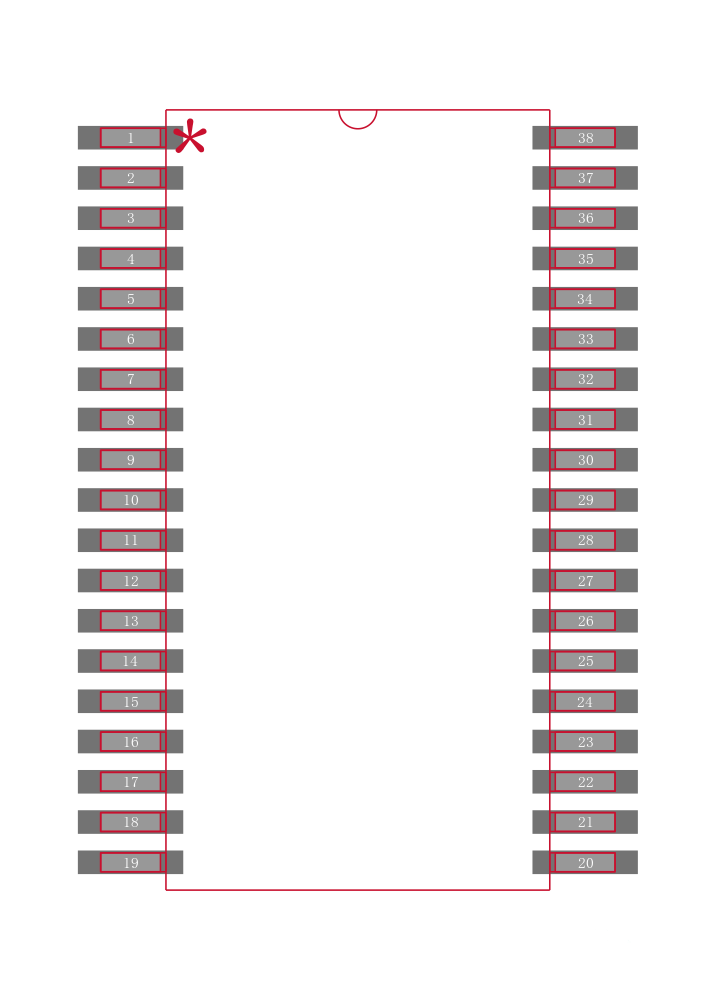

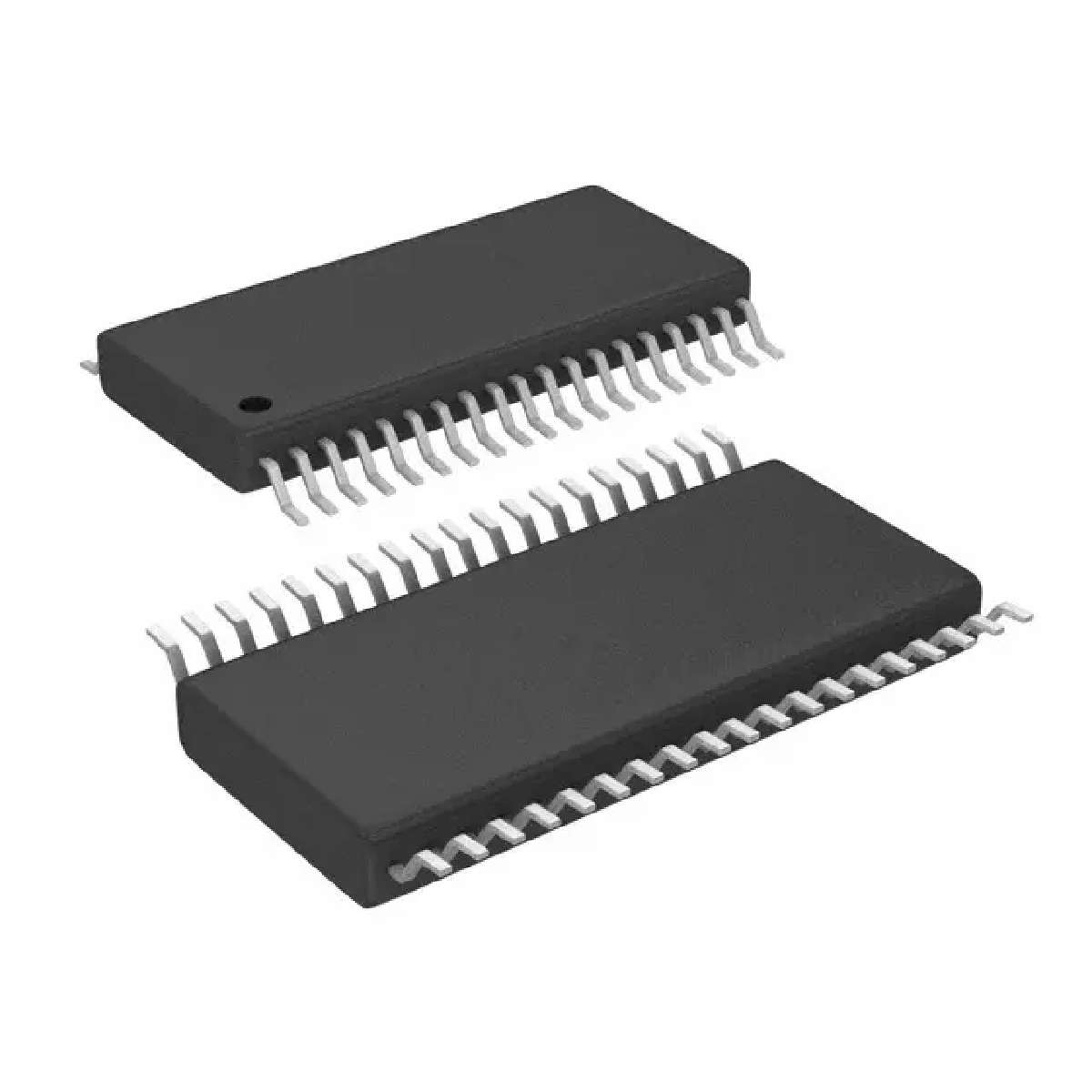

TEXAS INSTRUMENTS  MSP430F2274IDAR  芯片, 微控制器, 16位, MSP430, 16MHZ, TSSOP-38

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with two built-in 16-bit timers, an universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller DTC, 32 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

.

16-bit RISC architecture, 62.5ns instruction cycle time

.

Internal frequencies up to 16MHz with four calibrated frequencies to ±1%

.

Internal very-low-power low-frequency oscillator

.

32kHz Crystal

.

High-frequency HF crystal up to 16MHz

.

Resonator clock

.

External digital clock source

.

External resistor

.

16-bit Timer_A with 3 Capture/Compare registers

.

16-bit Timer_B with 3 Capture/Compare registers

.

Enhanced UART supporting auto-baudrate detection LIN

.

IrDA Encoder and decoder

.

Synchronous SPI

.

10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller

.

Brownout detector

.

Serial on-board programming

.

No external programming voltage needed

.

Programmable code protection by security fuse

.

Bootstrap loader

.

On-chip emulation module
