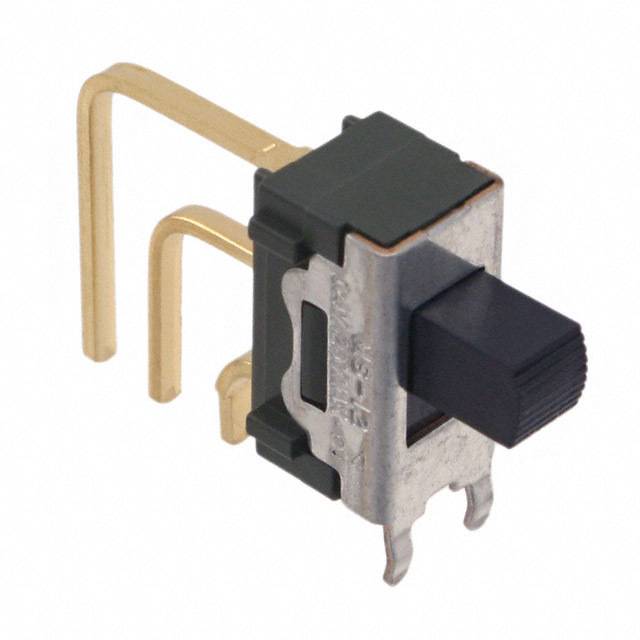

NKK SWITCHES MS12ASG40 滑动开关, SPDT, 0.1A, 28V, 面板安装
Series MS miniature slides are designed to give a choice of form factors for horizontal/vertical deployment on pcb or panel. There is also a choice between logic-level or power contacts to better match the switch to circuit applications. When matched with a logic-level or power circuit as intended, the results do not produce hazardous energy. UL, cULus and CSA recognized only when ordered with marking on the switch. Add "/U", "/CUL" or "/C" to end of part number to order UL recognized or CSA certified switch.
额定电压DC 28 V
额定电压AC 28 V
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 7.1 mm
宽度 23.48 mm
高度 13.25 mm
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
