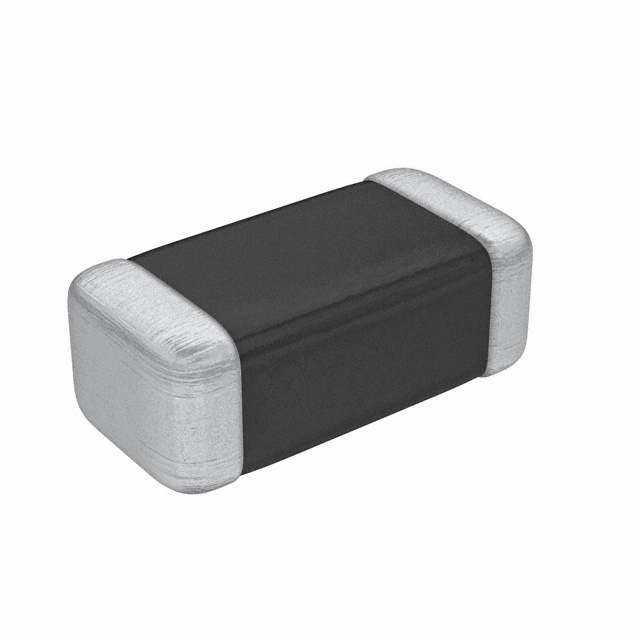

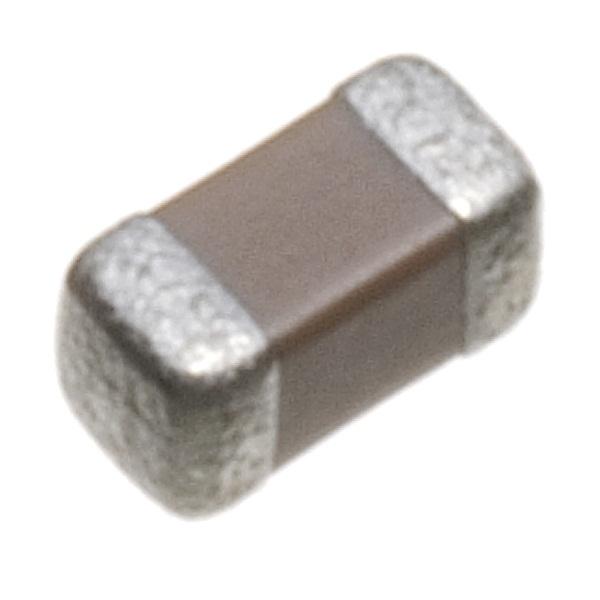

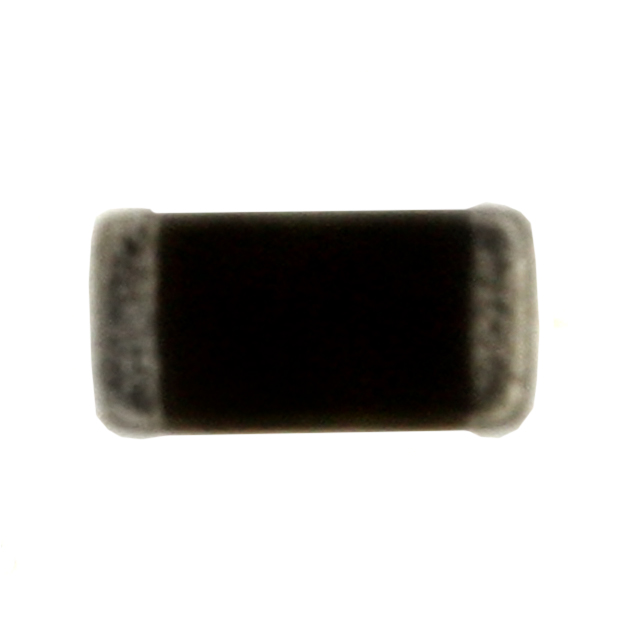

TDK MPZ1608D101B 铁氧体磁珠, 0603, 100Ω
The MPZ 1608 series are chip ferrite beads used for automobiles and power supply circuits. They are convenient components which exert effects as noise suppression measures by simply being inserted into circuits in series unlike bypass capacitors. Multilayer integration monolithic structure makes it highly reliable and has low direct current resistance for compatibility with large currents. Typical applications are engine control units, powertrains and car multimedia telematics.
- .
- EIA 1608 standard chip size
- .
- Impedance values at 100MHz is 120 ohm, 470 ohm
- .
- Operating temperature range -55°C to 125°C
频率 100 MHz
额定电流 1 A
电阻 150 mΩ
屏蔽 No
测试频率 100 MHz
电阻DC） 150 mΩ
额定电流DC 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.15 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, Industrial, 电源管理, 便携式器材, Automotive, Portable Devices, 消费电子产品, 工业, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MPZ1608D101B TDK 东电化 | 当前型号 | 当前型号 |
MPZ1608D101BTA00 东电化 | 类似代替 | MPZ1608D101B和MPZ1608D101BTA00的区别 |
