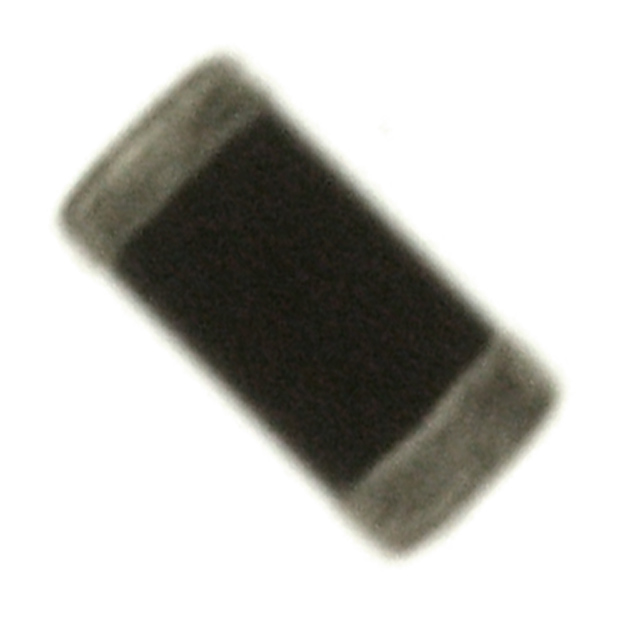

TDK MPZ1608D300B 铁氧体磁珠, 0603, 30Ω
The MPZ 1608 series are chip ferrite beads used for automobiles and power supply circuits. They are convenient components which exert effects as noise suppression measures by simply being inserted into circuits in series unlike bypass capacitors. Multilayer integration monolithic structure makes it highly reliable and has low direct current resistance for compatibility with large currents. Typical applications are engine control units, powertrains and car multimedia telematics.
- .
- EIA 1608 standard chip size
- .
- Impedance values at 100MHz is 120 ohm, 470 ohm
- .
- Operating temperature range -55°C to 125°C
频率 100 MHz
额定电流 1.8 A
电阻 60.0 mΩ
屏蔽 No
测试频率 100 MHz
电阻DC） 60 mΩ
额定电流DC 1.8 A
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.06 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Automotive, Portable Devices, Power Management, Industrial, 便携式器材, 消费电子产品, 工业, Consumer Electronics, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
