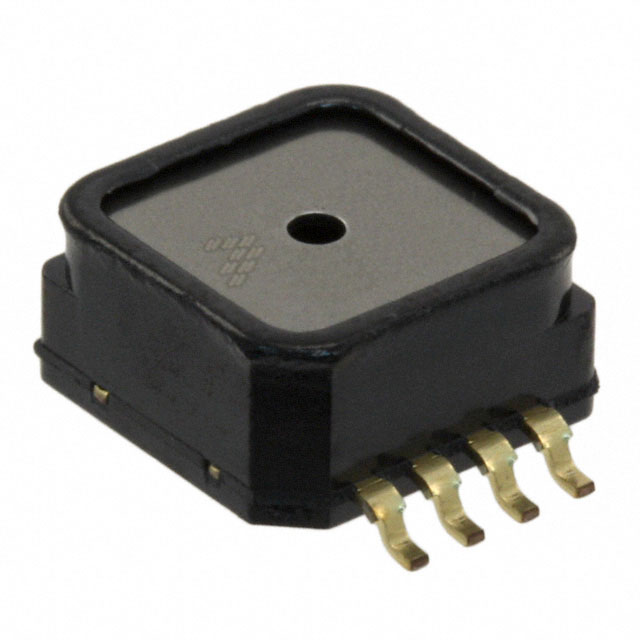

NXP MPXH6250A6U 压力传感器, 绝对, 20.4 mV/kPa, 20 kPa, 250 kPa, 4.74 V, 5.46 V
The is an Integrated Pressure Sensor for small engines and fuel injected car engines. The MPXx6250A series sensor integrates on-chip, bipolar op-amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make the MAP sensor a logical and economical choice for automotive system designers. The MPXx6250A series piezoresistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization and bipolar semiconductor processing to provide an accurate, high level analogue output signal that is proportional to applied pressure.
电源电压DC 4.74V min
额定电压DC 5.00 V
无卤素状态 Not Halogen Free
输出电压 0.3V ~ 4.9V
供电电流 6.00 mA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
电源电压 4.74V ~ 5.46V
电源电压Max 5.46 V
电源电压Min 4.74 V
安装方式 Surface Mount
引脚数 8

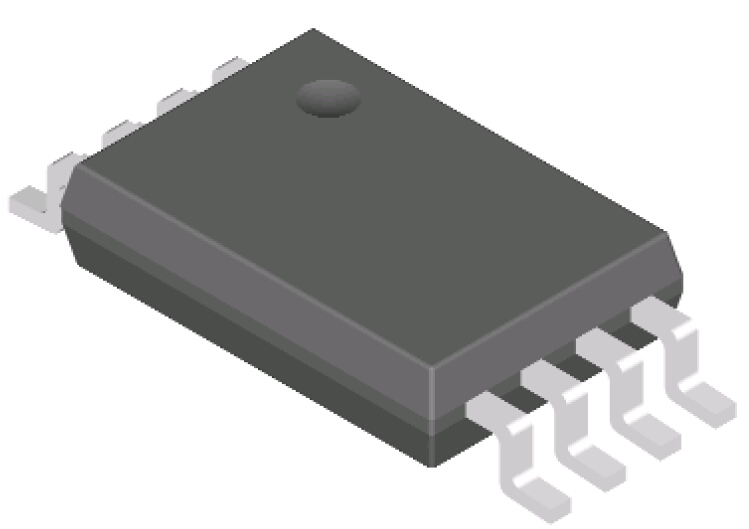

封装 SSOP-8
高度 4.17 mm
封装 SSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 工业, 计算机和计算机周边, 板式安装, Automotive, Automation & Process Control, 自动化与过程控制, Computers & Computer Peripherals, Industrial, 车用
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MPXH6250A6U NXP 恩智浦 | 当前型号 | 当前型号 |
MPXH6250A6T1 恩智浦 | 完全替代 | MPXH6250A6U和MPXH6250A6T1的区别 |
