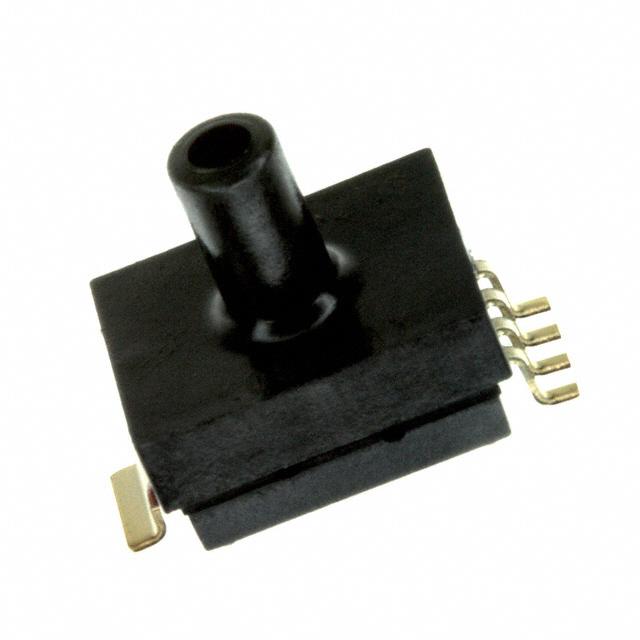

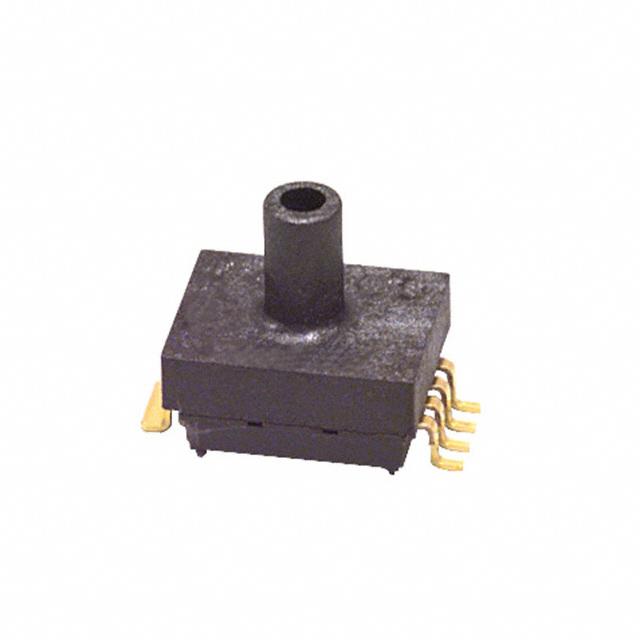

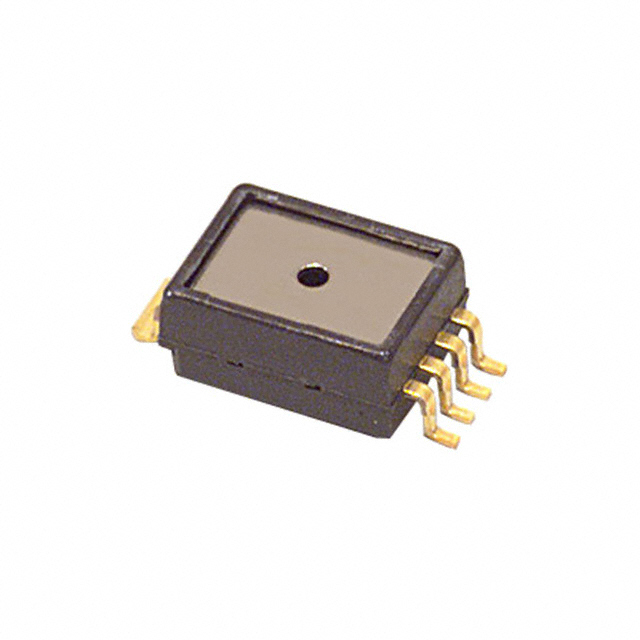

MPXM2010GST1

NXP  MPXM2010GST1  压力传感器, 计量器, 2.5 mV/kPa, 0 kPa, 10 kPa, 10 V, 16 V

Overview

The ® MPX2010/MPXV2010G/MPXM2010 series of silicon piezoresistive pressure sensors provide accurate and linear voltage output directly proportional to applied pressure.

* Laser trimmed for precise span, offset calibration and temperature compensation

* The series includes a strain gauge and thin-film resistor network integrated on each chip

MoreLess

## Features

* Temperature compensated over 0° to +85°C

* Ratiometric to supply voltage

* Single monolithic silicon die MPX2010/MPXV2010

* Differential and gauge options MPX2010/MPXV2010

* Single monolithic silicon diaphragm MPXM2010

* Available in easy-to-use tape and reel MPXM2010

* Gauge-ported and non-ported options MPXM2010
