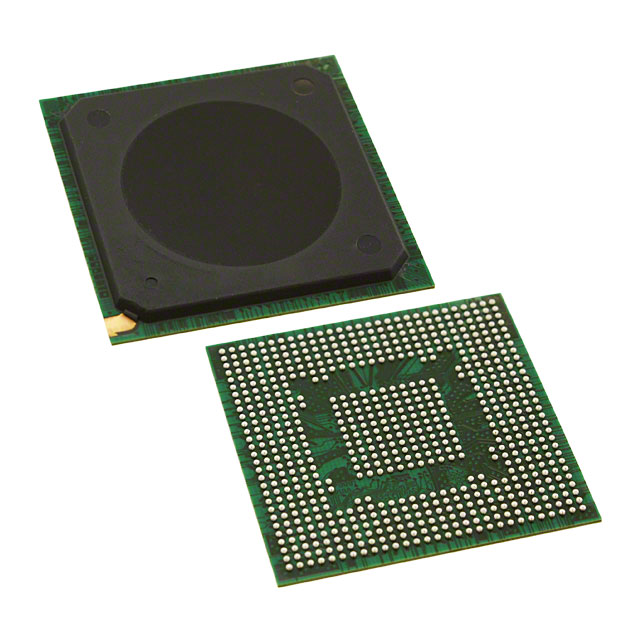

MPC8378VRALGA

NXP  MPC8378VRALGA  芯片, 微控制器, 32位, POWER, 667MHZ, TEPBGA-II-689

Overview

Today’s small-to-medium businesses and consumer applications are driving the need for highly integrated, cost-effective solutions that deliver high performance. The MPC8378E provides a high-performance Power Architecture® e300 core up to 800MHz with 32K I/D L1 cache and integrated x2 PCI Express® controllers that help to reduce overall BOM cost. The system-on-chip SoC includes two Gigabit Ethernet GbE controllers with an SGMII interface for network connectivity, as well as a security engine for encryption algorithm offload. The MPC8378E, based in 90 nm process technology, provides high integration that simplifies board design and provides a cost-effective solution for applications such as wireless access points and routers.

Product MPC8378ECVRAGDA on this page is Not Recommended for New Designs.

MoreLess

## Features

* Integrated x2 PCI Express® for high I/O connectivity.

* Dual GbE controllers with SGMII interface for lower pin count than parallel interfaces.

* High system performance with Power Architecture e300 core that can achieve up to 800 MHz

* Security to support encryption algorithms such as AES and DES/3DES

* This product is included in ®.s product longevity program, with assured supply for a minimum of 10 years after launch

## Features Comparison Table

### MPC837xE Family Comparison

| MPC8379E | MPC8378E | MPC8377E

\---|---|---|---

**External Bus Interface** | PCI | PCI

PCI-Express | PCI

PCI-Express

**Cache** | 32 KB | 32 KB | 32 KB

**Core: Type** | e300 | e300 | e300

**External Memory Supported** | DDR1

DDR2

EPROM

FLASH

SDRAM

DRAM | DDR1

DDR2

EPROM

FLASH

SDRAM

DRAM | DDR1

DDR2

EPROM

FLASH

SDRAM

DRAM

**USB features** | USB 2.0 | USB 2.0 | USB 2.0

**Ethernet Type** | 1GBaseT

MII | 1GBaseT

MII | 1GBaseT

MII

**Security** | 3 | 3 | 3

**Package Description and Diagram** | PBGA-PGE 689 31SQ1.25P1 | PBGA-PGE 689 31SQ1.25P1 | PBGA-PGE 689 31SQ1.25P1 Hardware / Software / Tech Support Bundle
