MMU01020C8209FB300

VISHAY  MMU01020C8209FB300  电阻, 金属电极无限面MELF 表面贴装, MMU 0102系列, 82 ohm, 200 mW, ± 1%, 金属膜, MELF DIN 0102 [2211 公制]

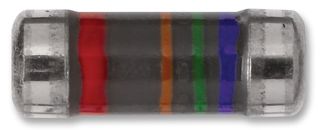

The Vishay MMU 0102 series is automotive grade thin film MELF surface mount resistors. These resistors are a perfect choice where reliability and stability is of concern. MELF resistors are available in resistance value ranging from 0.22ohm to 2.21Mohm.

.

Available in DIN0102 size

.

Available in ±5%, ±2%, ±1%, ±0.5% tolerance

.

Temperature coefficient TCR of ±50ppm/K, ±25ppm/K

.

Power rating of 0.3W and rated voltage of 150V

.

Operating temperature range -55°C to +155°C

.

Automotive grade AEC-Q200 qualified

.

Approved according to EN 140401-803

.

Advanced metal film technology

.

Excellent overall stability that exceeds class 0.25

.

Jumpers are also available
