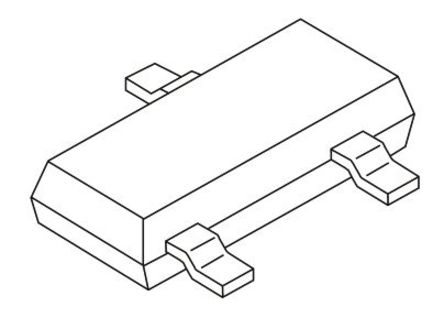

NXP MMBZ9V1AL 静电保护装置, TVS, 14 V, TO-236AB, 3 引脚, 900 mV, 360 mW
The is a low capacitance unidirectional double ESD Protection Diode in a common anode configuration. The device is designed for ESD and transient overvoltage protection of up to two signal lines.
工作电压 900 mV
针脚数 3
耗散功率 360 mW
钳位电压 14 V
测试电流 1 mA
脉冲峰值功率 24 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-236
长度 3 mm
宽度 1.4 mm
高度 1.1 mm
封装 TO-236
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Portable Devices, Consumer Electronics, Automotive, Computers & Computer Peripherals, Imaging, Audio, Video & Vision
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
