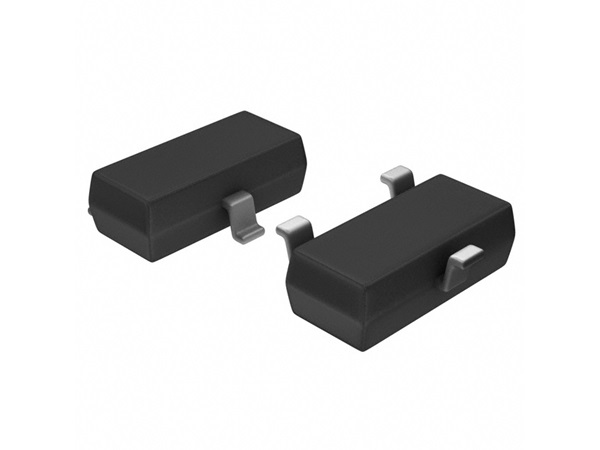

MMBT5087

FAIRCHILD SEMICONDUCTOR  MMBT5087  单晶体管 双极, PNP, -50 V, 40 MHz, 350 mW, -100 mA, 250 hFE

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| −50V 集电极连续输出电流ICCollector CurrentIC| −100mA/-0.1A 截止频率fTTranstion FrequencyfT| 40MHz 直流电流增益hFEDC Current GainhFE| 250~800 管压降VCE（sat）Collector-Emitter SaturationVoltage| -300mV/-0.3V 耗散功率PcPoWer Dissipation| 350mW/0.35W Description & Applications| PNP General Purpose Amplifier • This device is designed for low level, high gain, low noise general purpose amplifier applications at collector currents to 50mA. 描述与应用| PNP通用放大器 该设备是专为低层次，高增益，低噪声通用放大器应用在集电极电流为50mA。
