MMBT100

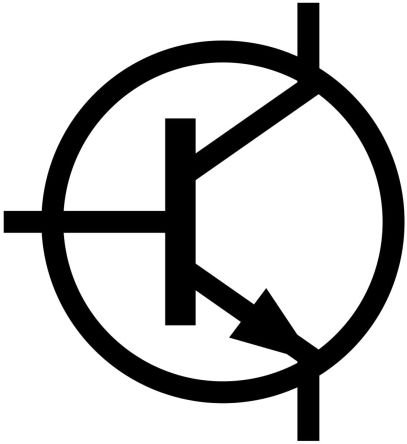

FAIRCHILD SEMICONDUCTOR  MMBT100  单晶体管 双极, NPN, 45 V, 250 MHz, 350 mW, 500 mA, 80 hFE

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| 75V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| 45V 集电极连续输出电流ICCollector CurrentIC| 500mA/0.5A 截止频率fTTranstion FrequencyfT| 250Mhz 直流电流增益hFEDC Current GainhFE| 100~600 管压降VCE（sat）Collector-Emitter Saturation Voltage| 200mV~400mV 耗散功率PcPower Dissipation| 350mW/0.35W Description & Applications| • This device is designed for general purpose amplifier applications at collector currents to 300mA. • Sourced from process 10. 描述与应用| •本设备是专为通用放大器 应用在集电极电流300mA的电流。
