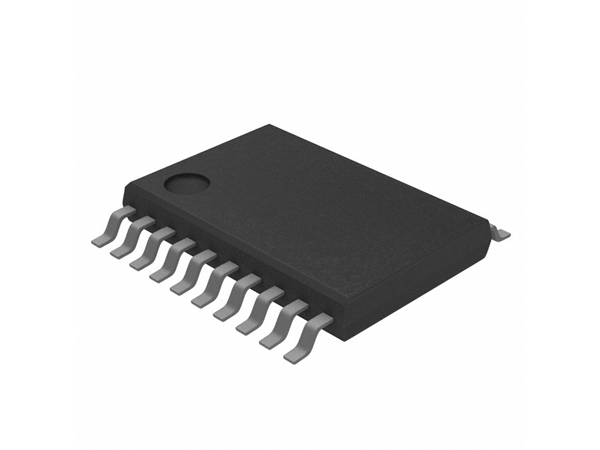

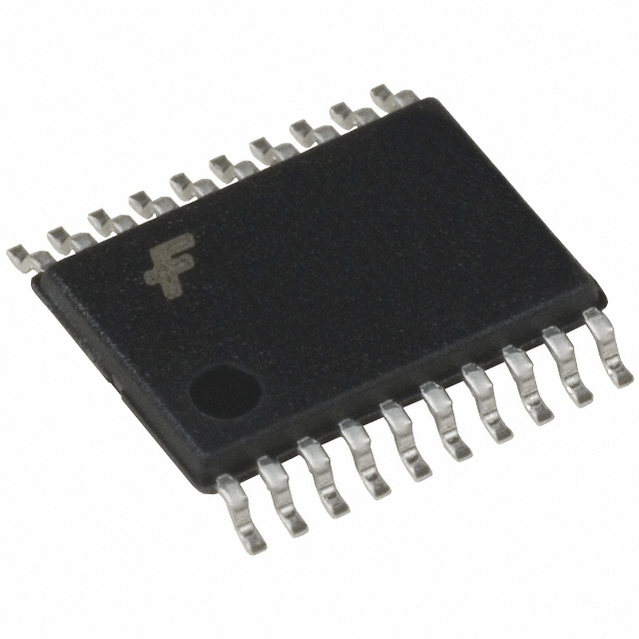

TSSOP 20引脚
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Semiconductor. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
电源电压DC 2.00V min
输出接口数 8
通道数 8
针脚数 20
位数 8
耗散功率 500 mW
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MM74HC541MTCX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MM74HC541MTC 飞兆/仙童 | 完全替代 | MM74HC541MTCX和MM74HC541MTC的区别 |
MC74HC541ADTG 安森美 | 功能相似 | MM74HC541MTCX和MC74HC541ADTG的区别 |
SN74HC541PW 德州仪器 | 功能相似 | MM74HC541MTCX和SN74HC541PW的区别 |
