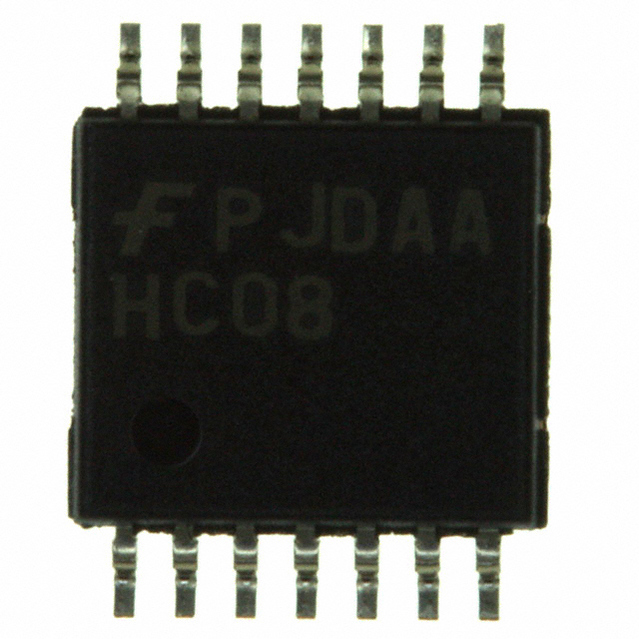

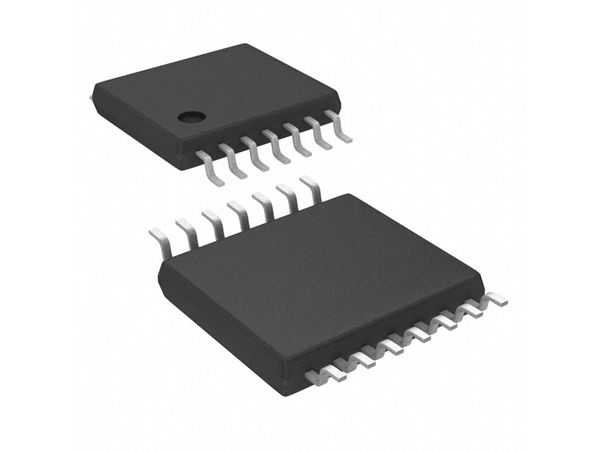

MM74HC08MTCX

四2输入与门 Quad 2-Input AND Gate

General Description

The MM74HC08 AND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static dis charge by internal diode clamps to VCCand ground.

Features

■Typical propagation delay: 7 ns tPHL, 12 ns tPLH

■Fanout of 10 LS-TTL loads

■Quiescent power consumption: 2 µA maximum at room temperature

■Low input current: 1 µA maximum
