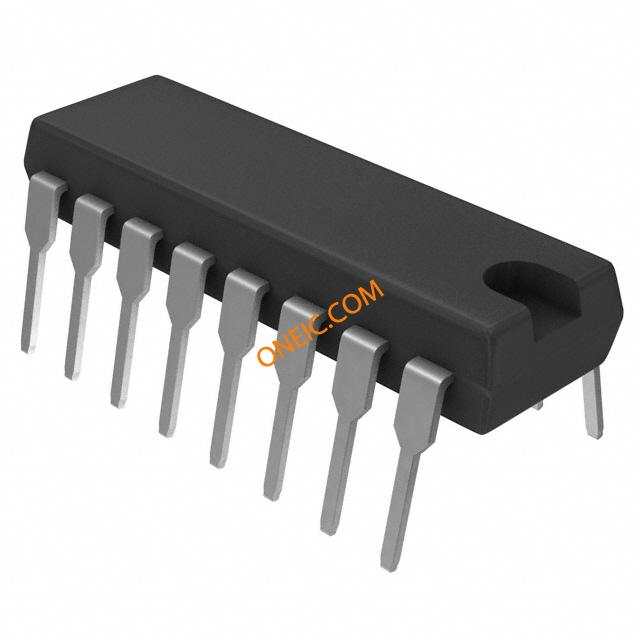

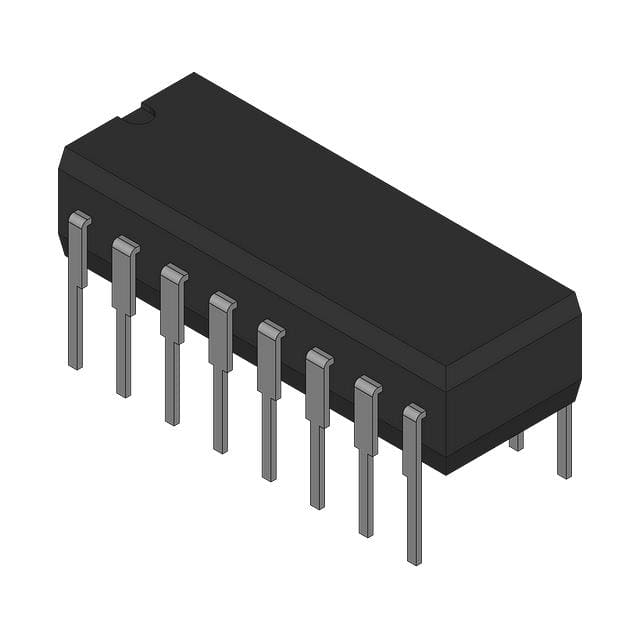

MM74HC589N

FAIRCHILD SEMICONDUCTOR  MM74HC589N  移位寄存器, DIP, 16 引脚, 2 V, 6 V

General Description

The MM74HC589 high speed shift register utilizes advanced silicon-gate CMOS technology to achieve the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads.

The MM74HC589 comes in a 16-pin package and consists of an 8-bit storage latch feeding a parallel-in, serial-out 8-bit shift register. Data can also be entered serially the shift register through the SER pin. Both the storage register and shift register have positive-edge triggered clocks, RCK and SCK, respectively. SLOAD pin controls parallel LOAD or serial shift operations for the shift register. The shift register has a 3-STATE output to enable the wire-ORing of multiple devices on a serial bus.

The 74HC logic family is speed, function, and pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features

■ 8-bit parallel storage register inputs

■ Wide operating voltage range: 2V–6V

■ Shift register has direct overriding load

■ Guaranteed shift frequency. . . DC to 30 MHz

■ Low quiescent current: 80 µA maximum 74HC Series

■ 3-STATE output for ‘Wire-OR"
