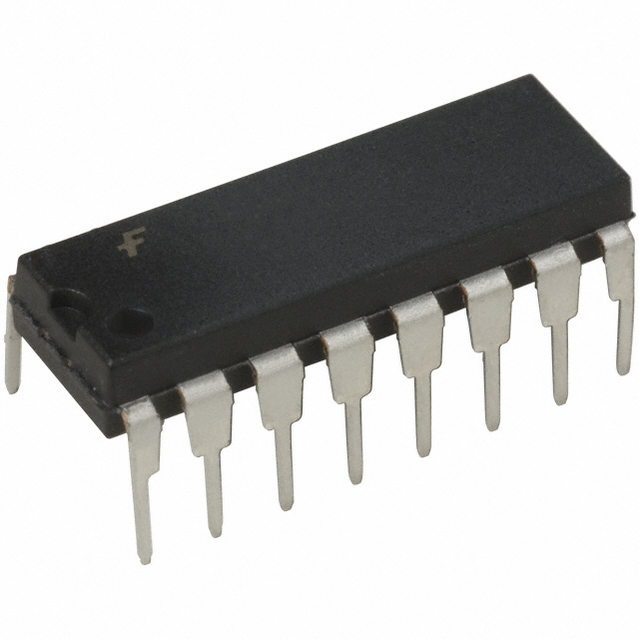

MM74HC595N

FAIRCHILD SEMICONDUCTOR  MM74HC595N  移位寄存器, 串行至并行, 1元件, DIP, 16 引脚, 2 V, 6 V

General Description

The MM74HC595 high speed shift register utilizes advanced silicon-gate CMOS technology. This device pos sesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads.

Features

 Low quiescent current: 80 µA maximum 74HC Series

 Low input current: 1 µA maximum

 8-bit serial-in, parallel-out shift register with storage

 Wide operating voltage range: 2V–6V

 Cascadable

 Shift register has direct clear

 Guaranteed shift frequency: DC to 30 MHz
