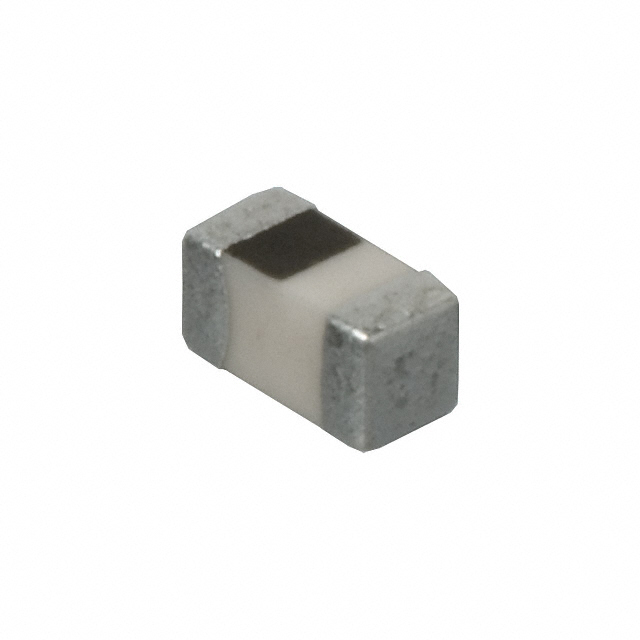

MLG1005S8N2J

TDK  MLG1005S8N2J  表面贴装高频电感器, MLG系列, 8.2 nH, ± 5%, 0402 [1005 公制], 3 GHz, 0.3 ohm

Inductor High Frequency Chip Unshielded Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 500mA 300mOhm DCR 0402 T/R

e络盟:
高频电感器, 8.2 nH, MLG系列, 500 mA, 0402 [1005 公制], 多层, 0.3 ohm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this high frequency chip MLG1005S8N2J surface mount inductor from TDK is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 8.2n H. This device utilizes multi-layer technology. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 3G Hz. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 300m Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

Chip1Stop:
Ind High Frequency Chip Unshielded Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 500mA 0402

TME:

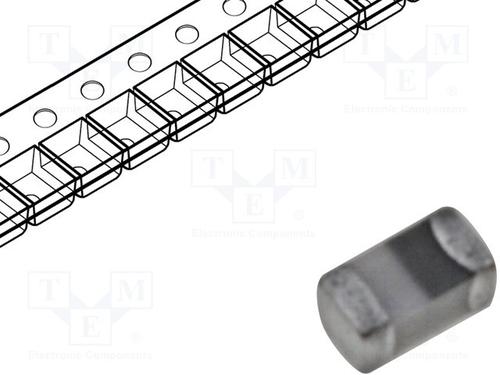

Inductor: ceramic; SMD; 0402; 8.2nH; 500mA; 190mΩ; Q:8; ftest:100MHz

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0082uH 5% 100MHz 8Q-Factor Ceramic 0.5A 0.3Ohm DCR 0402 T/R

Newark:
# TDK  MLG1005S8N2J  Surface Mount High Frequency Inductor, MLG Series, 8.2 nH, 5%, 0402 [1005 Metric], 3 GHz, 0.3 ohm

MASTER:
Inductor High Frequency Chip Unshielded Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 500mA 300mOhm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 8.2nH 5% 100MHz 8Q-Factor Ceramic 500mA 300mOhm DCR 0402 T/R
