MLG1608BR10J

TDK  MLG1608BR10J  表面贴装高频电感器, MLG系列, 100 nH, ± 5%, 0603 [1608 公制], 800 MHz, 1 ohm

Inductor High Frequency Chip Unshielded Multi-Layer 100nH 5% 100MHz 14Q-Factor Ceramic 300mA 1Ohm DCR 0603 T/R

贸泽:
Fixed Inductors 100nH 1.0ohms 300mA

e络盟:
高频电感器, 100 nH, MLG系列, 300 mA, 0603 [1608 公制], 多层, 1 ohm

艾睿:

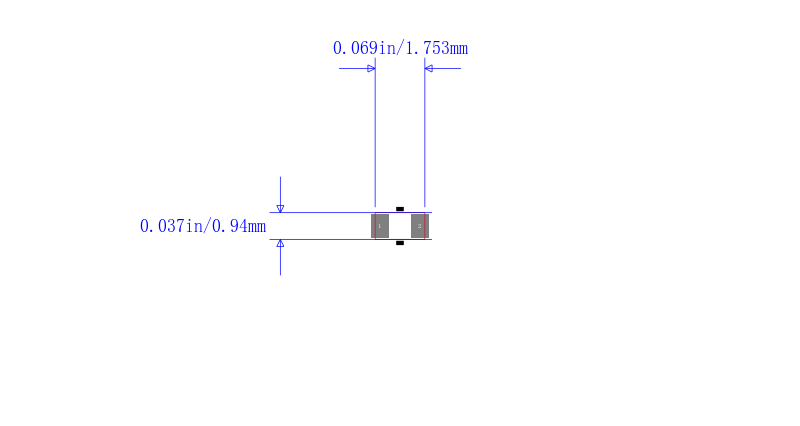

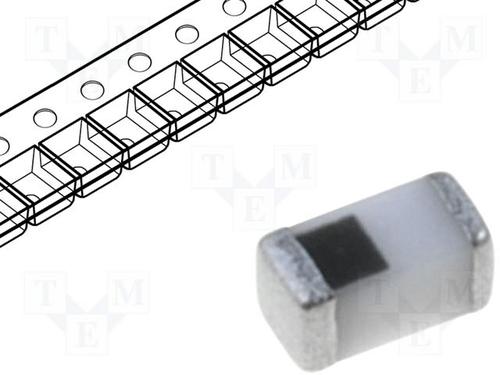

This high frequency chip MLG1608BR10J surface mount inductor from TDK is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes multi-layer technology. It has an inductance of 100n H. It has a tolerance of 5%. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 800M Hz. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 1 Ohm.

富昌:
MLG 系列 0603 100 nH ±5 % 300 mA 表面贴装 高频率 多层 电感

Chip1Stop:
Ind High Frequency Chip Unshielded Multi-Layer 100nH 5% 100MHz 14Q-Factor Ceramic 300mA 0603

TME:
Inductor: ceramic; SMD; 0603; 100nH; 300mA; 640mΩ; ftest:100MHz

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 100nH 5% 100MHz 14Q-Factor Ceramic 300mA 1Ohm DCR 0603 T/R

Newark:
# TDK  MLG1608BR10J  Surface Mount High Frequency Inductor, MLG Series, 100 nH, 300 mA, 0603 [1608 Metric], Multilayer

MASTER:
Inductor High Frequency Chip Unshielded Multi-Layer 100nH 5% 100MHz 14Q-Factor Ceramic 300mA 1Ohm DCR 0603 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 100nH 5% 100MHz 14Q-Factor Ceramic 300mA 1Ohm DCR 0603 T/R
