MSP430G2230IDR

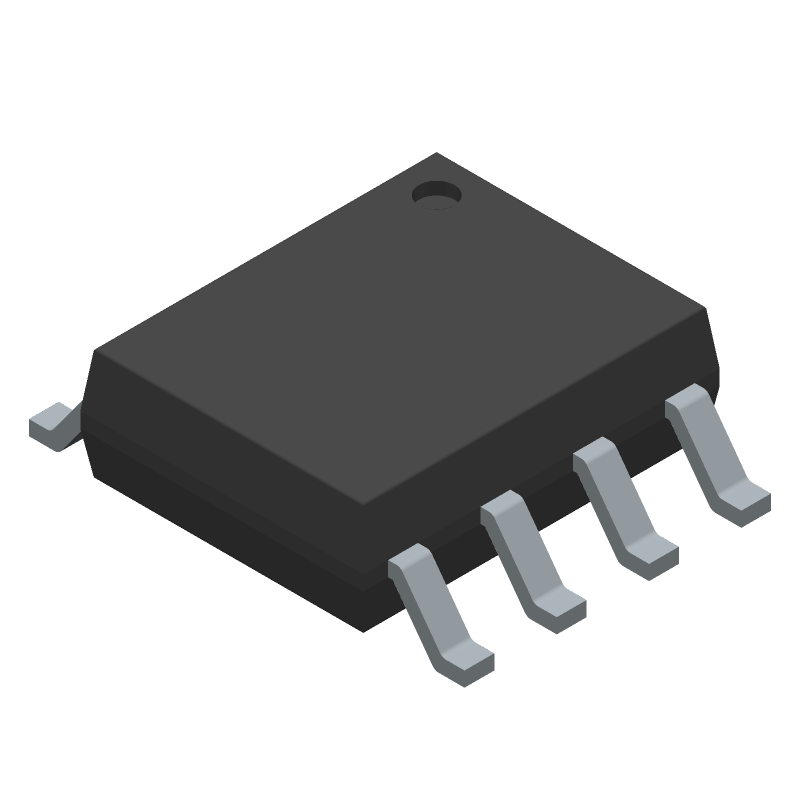

TEXAS INSTRUMENTS  MSP430G2230IDR  芯片, 微控制器, 16位, MSP430, 16MHZ, SOIC-8

The is a Mixed-signal Microcontroller consists of several device features different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1µs. The MSP430G22x0 series is an ultra-low-power mixed signal microcontroller with a built-in 16-bit timer and four I/O pins. In addition, the MSP430G2230 has a built-in communication capability using synchronous protocols SPI or I²C and a 10-bit A/D converter.

.

Five power-saving modes

.

Ultra-fast wake-up from standby mode in less than 1µs

.

16-bit RISC architecture, 62.5ns instruction cycle time

.

Internal frequencies up to 16MHz with four calibrated frequencies

.

Internal very-low-power low-frequency LF oscillator

.

Brownout detector

.

On-chip emulation logic with SPY-BI-wire interface

.

Green product and no Sb/Br
