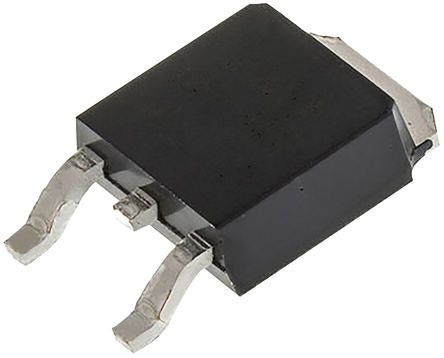

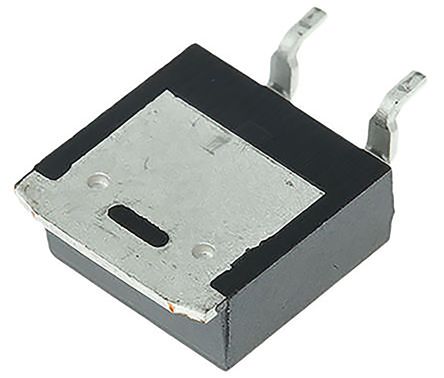

STMICROELECTRONICS MJD340T4 单晶体管 双极, NPN, 300 V, 15 W, 500 mA, 30 hFE
NPN 功率,STMicroelectronics
得捷:
TRANS NPN 300V 0.5A DPAK
立创商城:
NPN 300V 500mA
欧时:
### NPN 功率晶体管,STMicroelectronics### 双极晶体管,STMicroelectronicsSTMicroelectronics 的各种 NPN 和 PNP 双极性晶体管,包括通用、达林顿、功率和高电压设备,采用表面安装和通孔封装。
贸泽:
Bipolar Transistors - BJT NPN Gen Pur Switch
e络盟:
单晶体管 双极, NPN, 300 V, 15 W, 500 mA, 30 hFE
艾睿:
The three terminals of this NPN MJD340T4 GP BJT from STMicroelectronics give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor&s;s maximum emitter base voltage is 3 V. Its maximum power dissipation is 15000 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This bipolar junction transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 300 V and a maximum emitter base voltage of 3 V.
安富利:
Trans GP BJT NPN 300V 0.5A 3-Pin2+Tab DPAK T/R
富昌:
MJD340 Series NPN 300 V 0.5 A Complementary Silicon Power Transistor - TO-252-3
Verical:
Trans GP BJT NPN 300V 0.5A 15000mW 3-Pin2+Tab DPAK T/R
Newark:
# STMICROELECTRONICS MJD340T4 Bipolar BJT Single Transistor, NPN, 300 V, 15 W, 50 mA, 30 hFE
儒卓力:
**NPN TRANSISTOR 300V 0,5A DPAK **
Win Source:
TRANS NPN 300V 0.5A D-PAK
DeviceMart:
TRANSISTOR PWR COMPL D-PAK
额定电压DC 300 V
额定电流 500 mA
针脚数 3
极性 NPN
耗散功率 15 W
击穿电压集电极-发射极 300 V
最小电流放大倍数hFE 30 @50mA, 10V
最大电流放大倍数hFE 240
额定功率Max 15 W
直流电流增益hFE 30
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 15000 mW
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-3
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MJD340T4 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
MJD47T4 意法半导体 | 类似代替 | MJD340T4和MJD47T4的区别 |
MJD340T4G 安森美 | 功能相似 | MJD340T4和MJD340T4G的区别 |
MJD340G 安森美 | 功能相似 | MJD340T4和MJD340G的区别 |
