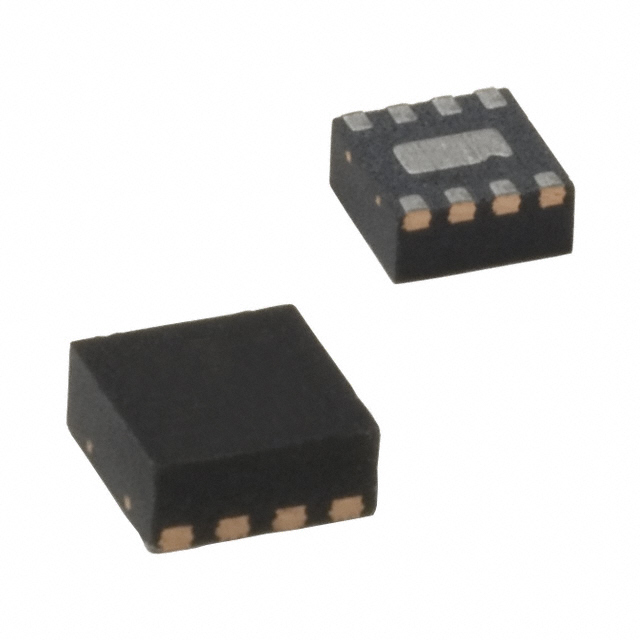

MIC5060YML TR

MICREL SEMICONDUCTOR  MIC5060YML TR  驱动器, MOSFET, 高压侧或低压侧, 2.75V-30V电源, 6µs延迟, Mlf-8

The is an ultra small high-side MOSFET Driver designed for gate control of N-channel, enhancement-mode and power MOSFETs used as high-side or low-side switches. The MIC5060 can sustain an on-state output indefinitely. The MIC5060 operates from a 2.75 to 30V supply. In high-side configurations, the driver can control MOSFETs that switch loads of up to 30V. In low-side configurations with separate supplies, the maximum switched voltage is limited only by the MOSFET. The MIC5060 features an internal charge pump that can sustain a gate voltage greater than the available supply voltage. The driver is capable of turning on a logic-level MOSFET from a 2.75V supply or a standard MOSFET from a 5V supply. The gate-to-source output voltage is internally limited to approximately 15V. The driver over-voltage shutdown feature turns OFF the external MOSFET at approximately 35V to protect the load against power supply excursions.

.

Internal charge pump

.

TTL-compatible input

.

Withstands 60V transient load dump

.

Over-voltage shutdown at 35V

.

Internal 15V gate protection

.

Minimum external parts

.

1µA Control input pull-OFF
