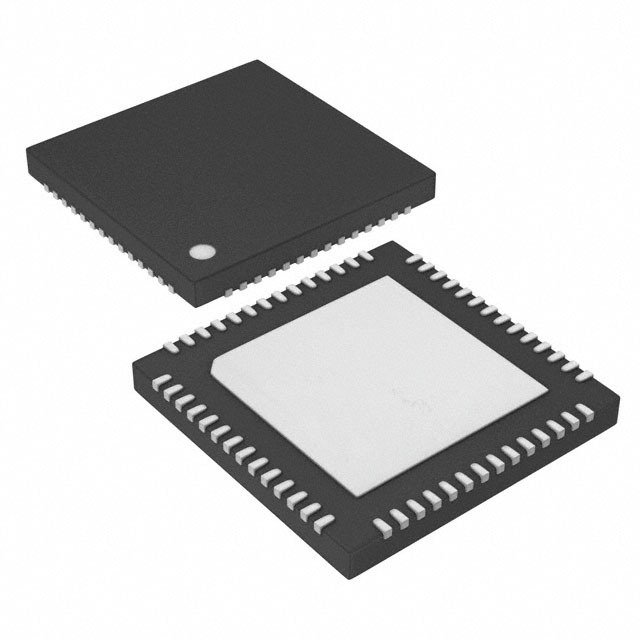

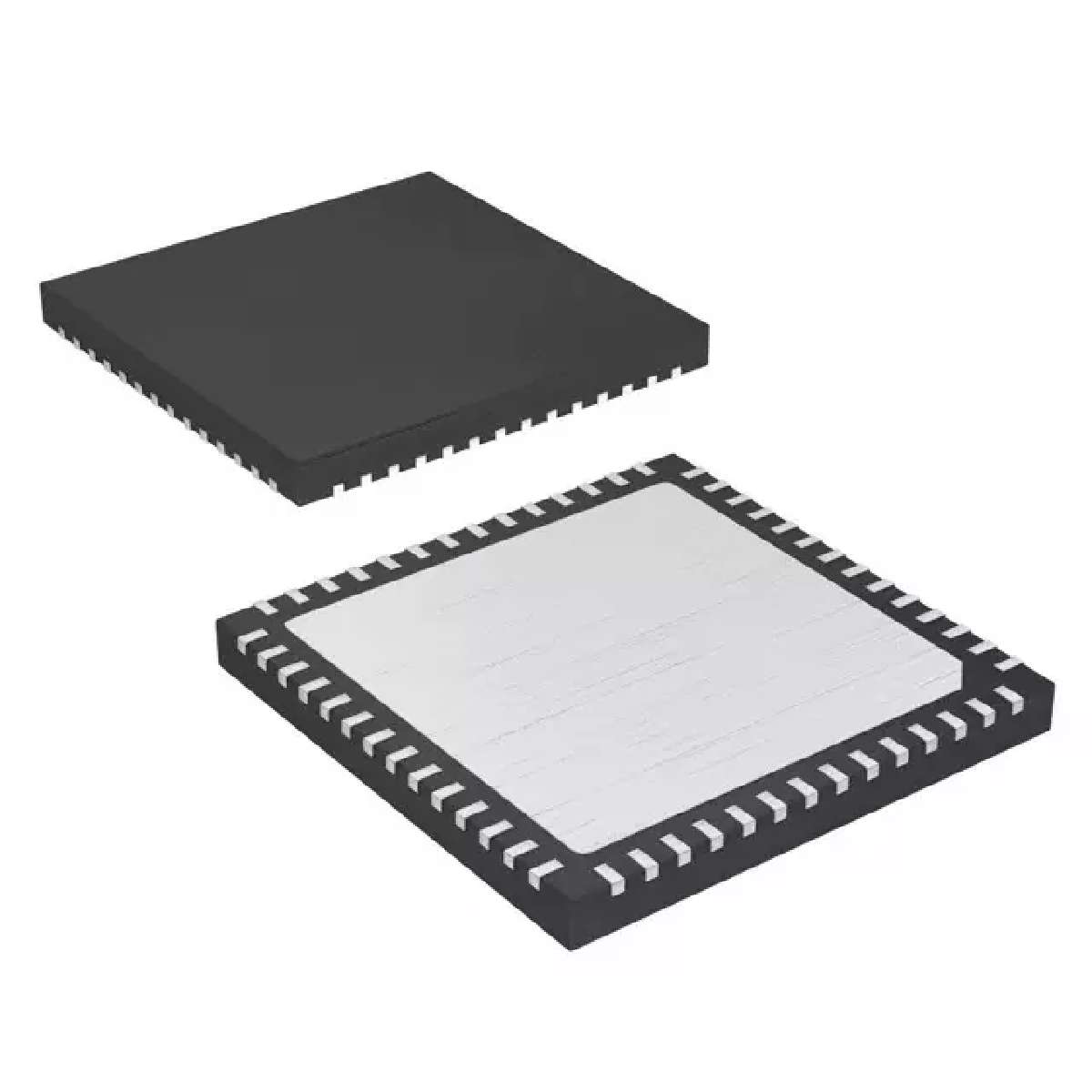

MAX19713ETN+T

Codec General Purpose 2CH 10Bit 2.5V/3V 56Pin TQFN EP T/R

2 Channel AFE 10 Bit 91.8mW 56-TQFN 7x7

得捷:
IC AFE 2 CHAN 10BIT 56TQFN

立创商城:
MAX19713ETN+T

安富利:
The MAX19713 is an ultra-low-power, highly integratedmixed-signal analog front-end AFE ideal for widebandcommunication applications operating in full-duplex FDmode. Optimized for high dynamic performance andultra-low power, the device integrates a dual 10-bit,45Msps receive Rx ADC; dual 10-bit, 45Msps transmitTx DAC; three fast-settling 12-bit aux-DAC channels forancillary RF front-end control; and a 10-bit, 333kspshousekeeping aux-ADC. The typical operating power inFD mode is 91.8mW at a 45MHz clock frequency.The Rx ADCs feature 54dB SINAD and 72.2dBc SFDR at5.5MHz input frequency with a 45MHz clock frequency.The analog I/Q input amplifiers are fully differential andaccept 1.024VP-P full-scale signals. Typical I/Q channelmatching is ±0.03 phase and ±0.02dB gain.The Tx DACs feature 70.3dBc SFDR at fOUT = 2.2MHzand fCLK = 45MHz. The analog I/Q full-scale output v

Chip1Stop:
Codec General Purpose 2-CH 10bit 2.5V/3V 56-Pin TQFN EP T/R
