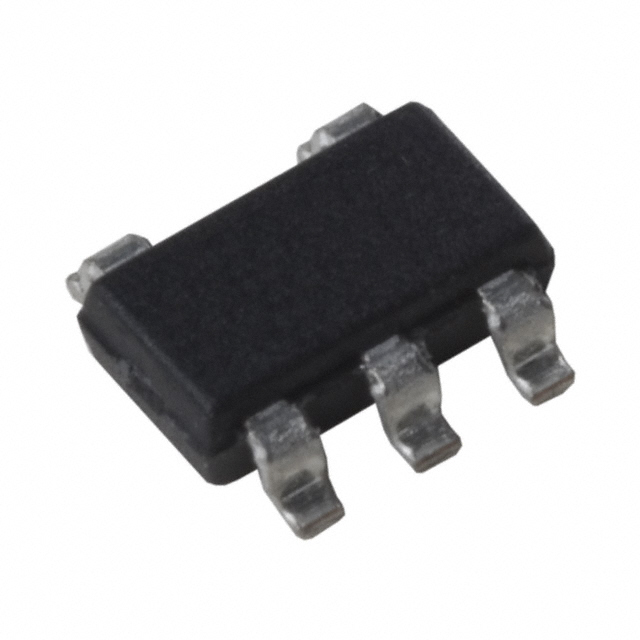

MIC5207-5.0YM5 TR

MICREL SEMICONDUCTOR  MIC5207-5.0YM5 TR  固定稳压器, LDO, 2.5V至16V, 165mV压降, 5V输出, 180mA输出, SOT-23-5

The is a 5V fixed output efficient Linear Regulator with ultra-low-noise output, very low-dropout LDO voltage typically 17mV at light loads and 165mV at 150mA and very low ground current 720µA at 100mA output. The device offers better than 3% initial accuracy. The device includes a CMOS or TTL compatible enable/shutdown control input. When in shutdown, power consumption drops nearly to zero. The device features include a reference bypass pin to improve its already low-noise performance, reversed-battery protection, current limiting and over temperature shutdown.

.

High output voltage accuracy

.

Extremely tight load and line regulation

.

Very low temperature coefficient

.

Zero off-mode current

.

Logic-controlled shutdown
