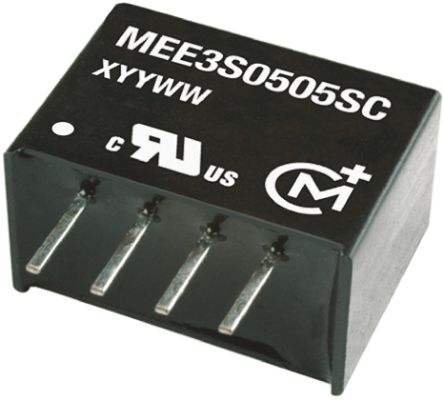

Murata Isolated 3W Single Output DC/DC Converter - MEE3 Series
MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.
High efficiency of up to 89% typically
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material
### 注
MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load
### 认可
cULus
### 标准
UL 60950
### Murata 电源解决方案 - SIP
电源电压DC 5.00 V
额定功率 3 W
输出接口数 1
输出电压 12 V
输出电流 0.25 A
输出功率 3 W
隔离电压 1 kV
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 250 mA
输出功率Max 3 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.5VDC ~ 5.5VDC
安装方式 Through Hole
引脚数 4
封装 SIP-4
长度 14.15 mm
宽度 8.15 mm
高度 10.15 mm
封装 SIP-4
重量 2.3 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Industrial, 信号处理, ITE（商业）, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
