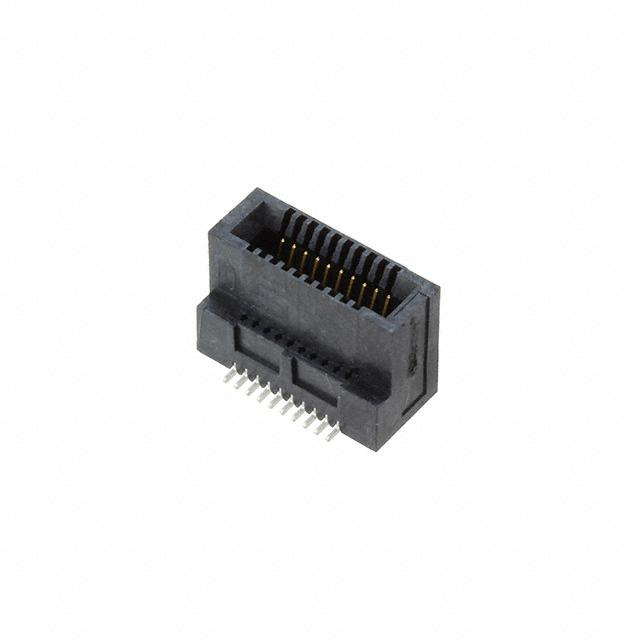

MEC8-110-02-L-DV-A

SAMTEC  MEC8-110-02-L-DV-A  连接器, MEC8系列, 卡边缘, 20 触点, 插座, 0.8 mm, 表面安装

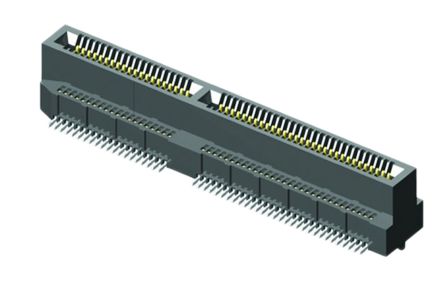

0.80mm MEC8 系列印刷电路板微型边缘卡插座

0.80mm MEC8 系列印刷电路板微型边缘卡插座采用带双排设计，可接受多达 140 个极化镀金触点。 这些 0.80mm MEC8 系列微型边缘卡插座提供印刷电路板垂直安装和印刷电路板直角安装选项，可接受 1.60mm 厚的卡。 0.80mm MEC8 垂直微型边缘卡插座具有 8.65mm 堆叠高度。

欧时:
Samtec MEC8-DV 系列 0.8mm 节距 2 行 20 路 垂直 SMT 母 边缘连接器 MEC8-110-02-L-DV-A

得捷:
CONN EDGE DUAL FMALE 20POS 0.031

艾睿:
When space for electrical connections on printed circuit boards is limited then it is in your favor to use this MEC8-110-02-L-DV-A smart card connector from Samtec. This SKT connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.8 mm. It has a maximum voltage rating of 185 VAC. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 1.8 A/contact. This product is 8.65 mm tall. This card edge connector has an operating temperature of -55 to 125 °C. MEC8-110-02-L-DV-A is housed in black liquid crystal polymer. It uses the solder termination method.

Chip1Stop:
Conn Card Edge SKT 20 POS 0.8mm Solder ST SMD

立创商城:
MEC8-110-02-L-DV-A

Newark:
# SAMTEC  MEC8-110-02-L-DV-A  Card Edge & Backplane Connector, MEC8 Series, Card Edge, Receptacle, 20, 0.8 mm, Surface Mount
