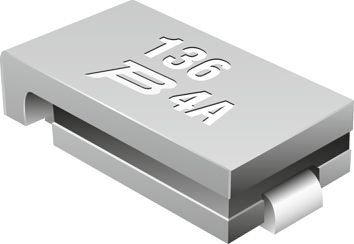

BOURNS MF-SMHT136-2 保险丝, PTC, 1.36mA, 16V, SMD
This positive temperature coefficient device from Bourns is an automatically resetting fuse. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 3Max mm tall and 5.44Max mm deep.
额定电压DC 16.0 V
工作电压 16 V
跳闸时间 10 s
额定电流 1.36 A
耗散功率 2.1 W
电阻 330 mΩ
保持电流 1.36 A
跳闸电流 2.72 A
电阻DC） 0.085 Ω
额定电流Max 100 A
保持电流Max 1.36 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 16 V
额定电压 16 V
安装方式 Surface Mount
封装 SMD-2
长度 7.98 mm
宽度 5.44 mm
高度 3 mm
封装 SMD-2
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
