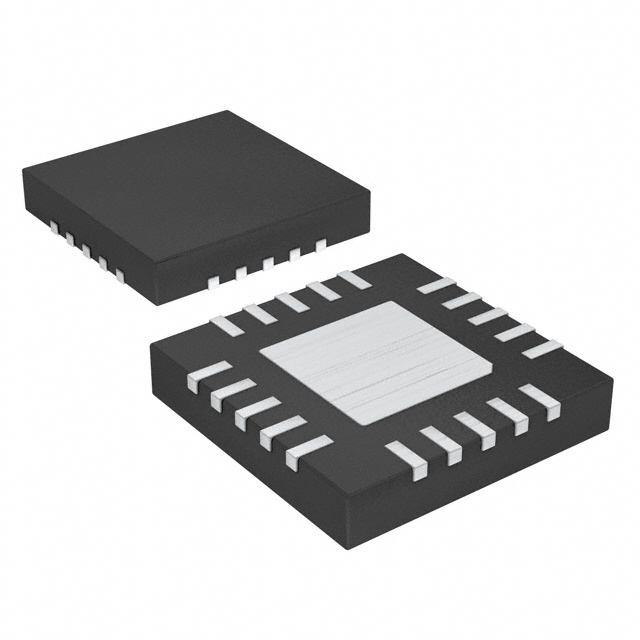

The is a 2.7Gbps, low power SFP laser driver in 24 pin TQFN package. The device accept differential input data and provide bias and modulation currents for driving a laser. DC-coupling to the laser allows for multirate applications and reduces number of external components. It is fully compliant with the SFP MSA timing and the SFF-8472 transmit diagnostic requirements. An automatic power-control APC feedback loop is incorporated to maintain a constant average optical power over temperature and lifetime. It provide transmit-disable control, a single-point latched transmit-failure monitor output, photocurrent monitoring and bias-current monitoring to indicate when the APC loop is unable to maintain the average optical power. It is used in gigabit Ethernet SFP/SFF transceiver modules, multirate OC3 to OC48-FEC SFP/SFF transceiver modules and 1G/2G fibre channel SFP/SFF transceiver modules.

.

Supply voltage range is 2.97V to 3.63V

.

Operating temperature range from -40°C to +85°C

.

SFP reference design available

.

Programmable modulation current from 10mA to 60mA DC-coupled, edge transition times <51ps

.

Programmable modulation current from 10mA to 85mA AC-coupled, power supply current is 27mA typ

.

Programmable bias current from 1mA to 100mA, multirate 155Mbps to 2.7Gbps operation

.

Automatic average power control

.

On-chip pull-up resistor for TX_DISABLE

.

Bias current monitor gain stability is +6% at 1mA
