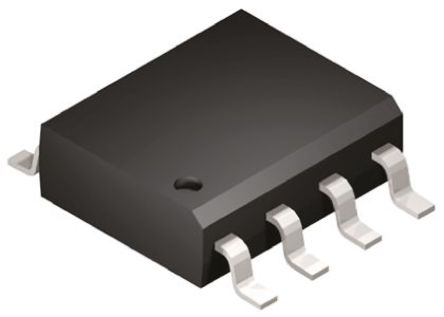

MAX13052ASA+

MAXIM INTEGRATED PRODUCTS  MAX13052ASA+.  总线, CAN, 收发器, CAN, 1, 1, 4.75 V, 5.25 V, SOIC

CAN 控制器，

### CAN 总线（控制器区域网络）通信

控制器区域网络（CAN 或 CAN 总线）是一个计算机网络协议和总线标准，设计用来允许微控制器和设备在没有主机的情况下可彼此进行通讯。 它是专门为汽车应用而设计，但现在也用于其他领域。

CAN 收发器允许协议层 CAN 控制器访问物理层总线。

得捷:
IC TRANSCEIVER FULL 1/1 8SOIC

立创商城:
MAX13052ASA+

欧时:
Maxim MAX13052ASA+ 1MBps CAN 收发器, 支持ISO 11898标准, 待机断电, 8引脚 SOIC封装

贸泽:
CAN 接口集成电路 CAN Transceiver w/80V Fault Protect

e络盟:
总线, CAN, CAN, 1, 1, 4.75 V, 5.25 V, SOIC

安富利:
The MAX13050/MAX13052/MAX13053/MAX13054 are pin-for-pin compatible, industry-standard, high-speed, control area network CAN transceivers with extended ±80V fault protection. These products are ideal automotive and industrial network applications where overvoltage protection is required. These CAN transceivers provide a link between the CAN protocol controller and the physical wires of the bus lines in a CAN. These devices can be used for +12V/+42V battery, automotive, and DeviceNet® applications, requiring data rates up to 1Mbps.The CAN transceivers have an input common-mode range greater than ±12V, exceeding the ISO11898 specification of -2V to +7V, and feature ±8kV ESD protection, making these devices ideal for harsh automotive and industrial environments.The CAN transceivers provide a dominant timeout function that prevents erroneous CAN controllers from clamping the bus to a dominant level if the TXD input is held low for greater than 1ms. The MAX13050/MAX13052 provide a SPLIT pin used to stabilize the recessive common-mode voltage. The MAX13052 also has a slope-control mode that can be used to program the slew rate of the transmitter for data rates of up to 500kbps. The MAX13053 features a silent mode that disables the transmitter. The MAX13053 also has a reference output that can be used to bias the input of older CAN controllers that have a differential comparator. The MAX13054 has a separate dedicated logic input, VCC2, allowing interfacing with a +3.3V microcontroller.The MAX13050/MAX13052/MAX13053/MAX13054 are available in an 8-pin SO package and are specified to operate in the -40°C to +85°C and the -40°C to +125°C temperature ranges.

Chip1Stop:
CAN 1Mbps Standby 3.3V/5V Automotive 8-Pin SOIC N

TME:
Integrated circuit: interface; transceiver; 1Mbps; SO8; -40÷125°C

Newark:
# MAXIM INTEGRATED PRODUCTS  MAX13052ASA+  IC, TRANSCEIVER, CAN, 1MBPS, 8SOIC

DeviceMart:
IC TRANSCEIVER CAN HS 8-SOIC
