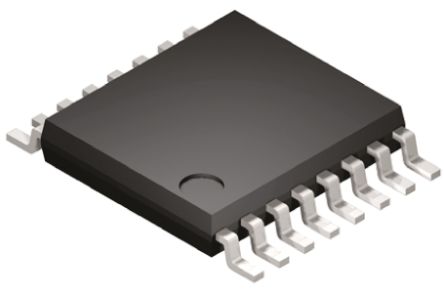

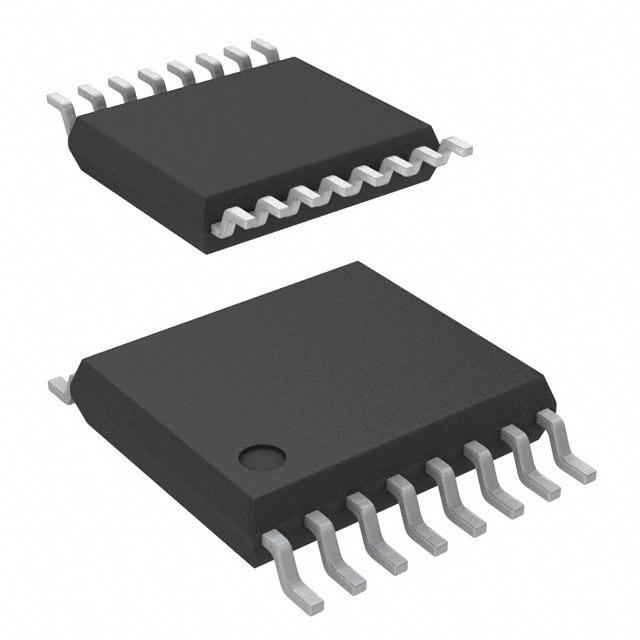

MAX7310AUE+

MAXIM INTEGRATED PRODUCTS  MAX7310AUE+  输入/输出扩展, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, TSSOP

串行 I/O 扩展器，

### 串行 I/O 扩展器

得捷:
IC XPND 400KHZ I2C SMBUS 16TSSOP

欧时:
### Serial I/O Expanders, Maxim Integrated### Serial I/O Expanders

立创商城:
MAX7310AUE+

e络盟:
输入/输出扩展, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, TSSOP

安富利:
The MAX7310 provides 8-bit parallel input/output port expansion for SMBus-compatible and I²C-compatible applications. The MAX7310 consists of an input port register, an output port register, a polarity inversion register, a configuration register, a bus timeout register, and an SMBus/I²C-compatible serial interface. The system master can invert the MAX7310 input data by writing to the active-high polarity inversion register. The system master can enable or disable bus timeout by writing to the bus timeout register.Any of the eight I/O ports can be configured as input or output. An active-low reset input sets the eight I/Os as inputs. Three address-select pins configure one of 56 slave ID addresses.The MAX7310 is available in 16-pin thin QFN, TSSOP, and QSOP packages and is specified over the -40°C to +125°C automotive temperature range.

Chip1Stop:
I2C/SMBus GPIO Expander 5.5V Automotive 16-Pin TSSOP

Newark:
# MAXIM INTEGRATED PRODUCTS  MAX7310AUE+  I/O Expander, 8bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, TSSOP

DeviceMart:
IC I/O EXPANDER I2C 8B 16TSSOP
