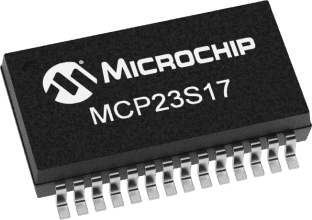

MCP23017系列 5.5V 10MHz 16位 I/O扩展器 带串行接口-SSOP-28
DEVICE OVERVIEW
The MCP23017/MCP23S17 MCP23X17 device family provides 16-bit, general purpose parallel I/O expansion for I2C bus or SPI applications. The two devices differ only in the serial interface:
• MCP23017 – I2C interface
• MCP23S17 – SPI interface
The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits IODIRA/B.
The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Features
• 16-Bit Remote Bidirectional I/O Port:
- I/O pins default to input
• High-Speed I2C Interface MCP23017:
- 100 kHz
- 400 kHz
- 1.7 MHz
• High-Speed SPI Interface MCP23S17:
- 10 MHz maximum
• Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
• Configurable Interrupt Output Pins:
- Configurable as active-high, active-low or open-drain
• INTA and INTB Can Be Configured to Operate Independently or Together
• Configurable Interrupt Source:
- Interrupt-on-change from configured register defaults or pin changes
• Polarity Inversion Register to Configure the Polarity of the Input Port Data
• External Reset Input
• Low Standby Current: 1 µA max.
• Operating Voltage:
- 1.8V to 5.5V @ -40°C to +85°C
- 2.7V to 5.5V @ -40°C to +85°C
- 4.5V to 5.5V @ -40°C to +125°C
电源电压DC 5.50V max
供电电流 1 mA
针脚数 28
时钟频率 10 MHz
位数 16
输入/输出数 16 Input
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 28

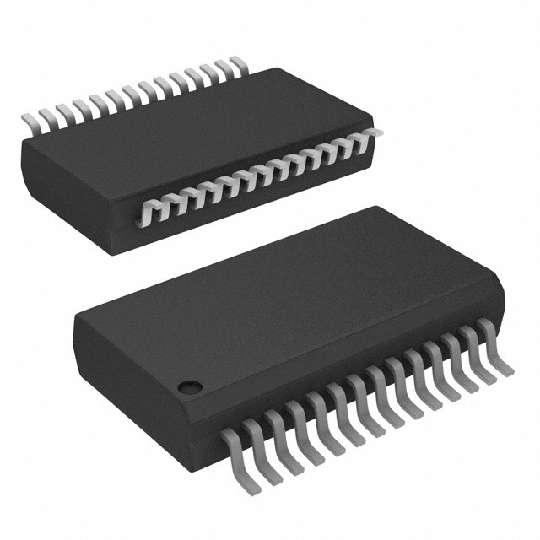

封装 SSOP-28
封装 SSOP-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP23S17T-E/SS Microchip 微芯 | 当前型号 | 当前型号 |
MCP23S17-E/SS 微芯 | 完全替代 | MCP23S17T-E/SS和MCP23S17-E/SS的区别 |
MCP23S17T-E/ML 微芯 | 类似代替 | MCP23S17T-E/SS和MCP23S17T-E/ML的区别 |
MCP23S17-E/SO 微芯 | 功能相似 | MCP23S17T-E/SS和MCP23S17-E/SO的区别 |
