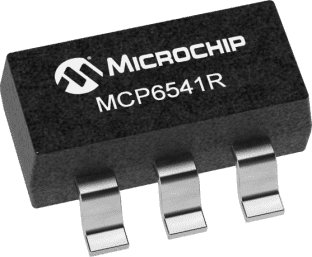

MICROCHIP MCP6541RT-E/OT 模拟比较器, 单路, AEC-Q100, 亚微安, 1, 4 µs, 1.6V 至 5.5V, SOT-23, 5 引脚
The is a push-pull output sub-microamp Comparator offered in single configurations. The outputs are push-pull and are capable of driving heavy DC or capacitive loads. This comparator is optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6541 family supports rail-to-rail output swing and interfaces with TTL/CMOS logic. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The output limits supply current surges and dynamic power consumption while switching. This product family operates with a single-supply voltage as low as 1.6V and draws less than 1µA/comparator of quiescent current.
工作电压 1.6V ~ 5.5V
供电电流 600 nA
电路数 1
通道数 1
针脚数 5
共模抑制比 70 dB
热阻 256 ℃/W
输入补偿电压 7 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.6V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.6 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 安全, Communications & Networking, Sensing & Instrumentation, 时钟与计时, Metering, 计量, Security, 通信与网络, 传感与仪器, Automotive, 消费电子产品, Consumer Electronics, Clock & Timing, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP6541RT-E/OT Microchip 微芯 | 当前型号 | 当前型号 |
MCP6541T-I/OT 微芯 | 类似代替 | MCP6541RT-E/OT和MCP6541T-I/OT的区别 |
MCP6541T-E/OT 微芯 | 类似代替 | MCP6541RT-E/OT和MCP6541T-E/OT的区别 |
MCP6541UT-E/OT 微芯 | 类似代替 | MCP6541RT-E/OT和MCP6541UT-E/OT的区别 |
