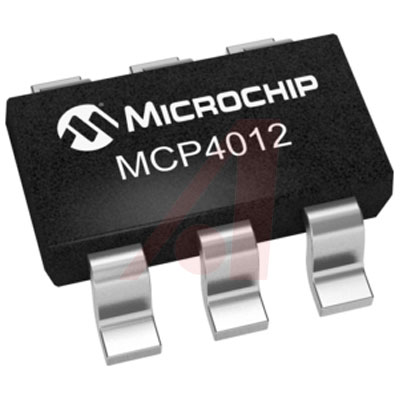

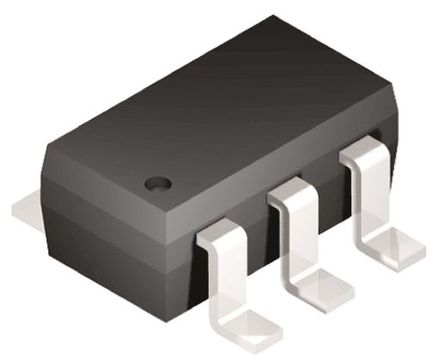

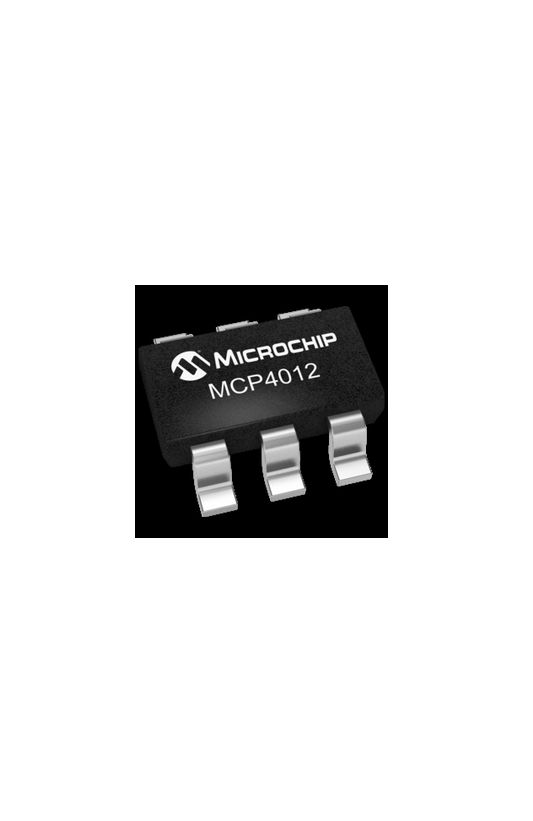

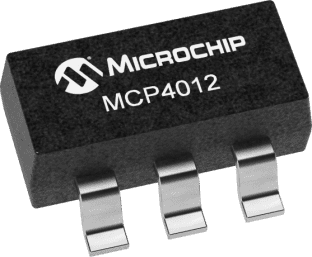

MICROCHIP MCP4012T-503E/CH 易失性数字电位器, AEC-Q100, 50 kohm, 单, 2线, 串行, 线性, ± 20%, 1.8 V
MCP4011/4012/4013/4014 数字电位计
### 数字电位计 -
得捷:
IC DGTL POT 50KOHM 64TAP SOT23-6
欧时:
Microchip MCP4012T-503E/CH 50kΩ 64位置 线性 数字电位计, 串行 2 线接口, 6引脚 SOT-23封装
立创商城:
MCP4012T-503E/CH
贸泽:
数字电位计 IC 50k U/D single 6-bit V Rheostat
艾睿:
Ideal for radio frequency processing circuits this MCP4012T-503E/CH digital potentiometer from Microchip Technology belongs in your design. This digital potentiometer has a temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device uses a single power supply.
Allied Electronics:
MCP4012T-503E/CH, Digi Potentiomtr 50kOhm 64-Pos Linear Serial-2Wire 6-Pin SOT-23
安富利:
Digital Potentiometer 64POS 50KOhm Single 6-Pin SOT-23A T/R
Chip1Stop:
Digital Potentiometer 64POS 50kOhm Single Automotive 6-Pin SOT-23A T/R
Verical:
Digital Potentiometer 50kOhm 64POS Volatile Linear Automotive 6-Pin SOT-23 T/R
Newark:
Volatile Digital Potentiometer, 50 kohm, Single, 2 Wire, Serial, Linear, 20%, 1.8 V
儒卓力:
**1xDCP 50k/64 U/D SOT23 SMD **
DeviceMart:
IC DGTL POT 50K 1CH RHEO SOT23-6
电源电压DC 1.80V min
容差 ±20 %
供电电流 1 µA
电路数 1
针脚数 64
电阻 50 kΩ
阻值偏差 ±20 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 3.1 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Sampling
包装方式 Tape & Reel TR
制造应用 信号处理, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99



| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP4012T-503E/CH Microchip 微芯 | 当前型号 | 当前型号 |
MCP4022T-503E/CH 微芯 | 类似代替 | MCP4012T-503E/CH和MCP4022T-503E/CH的区别 |
MCP4011T-503E/MS 微芯 | 类似代替 | MCP4012T-503E/CH和MCP4011T-503E/MS的区别 |
