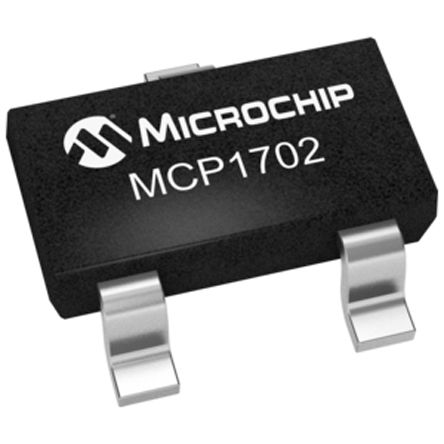

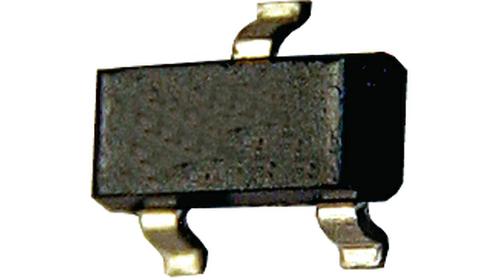

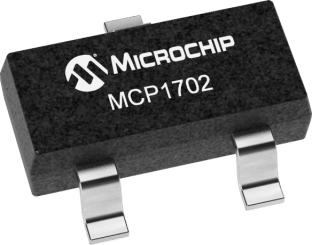

MICROCHIP MCP1702T-3002E/CB 固定电压稳压器, LDO, 2.7V至13.2V, 330mV压差, 3V输出, 250mA输出, SOT-23A-3
MCP1702 低压降电压稳压器
### LDO(低压降)线性稳压器,
立创商城:
正 Vin=13.2V Vout=3V 250mA 44dB@100Hz
得捷:
IC REG LINEAR 3V 250MA SOT23A-3
欧时:
Microchip MCP1702T-3002E/CB LDO 稳压器, 3 V输出, 250mA最大输出, ±0.4%精确度, 2.7 → 13.2 V输入
贸泽:
低压差稳压器 LDO w/ Low Quiescent
e络盟:
固定电压稳压器, LDO, 2.7V至13.2V, 330mV压差, 3V输出, 250mA输出, SOT-23A-3
艾睿:
Control the voltage level of your circuit with this LDO MCP1702T-3002E/CB linear regulator from Microchip Technology. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.625@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 13.2 V. With a fixed output that has a voltage of 3 V, this is power management at its best. By operating at a load regulation of 1%Typ and line regulation of 0.1%/VTyp you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.975@250mA V. Its polarity is positive.
Allied Electronics:
Pwr Sply Func; Voltage Regulator; LDO; Positive Voltage Out; SOT-23A; IS 2uA; VO 3V
安富利:
LDO Regulator Pos 3V 0.25A 3-Pin SOT-23A T/R
Verical:
LDO Regulator Pos 3V 0.25A Automotive 3-Pin SOT-23A T/R
Newark:
# MICROCHIP MCP1702T-3002E/CB Fixed LDO Voltage Regulator, 2.7V to 13.2V, 330mV Dropout, 3Vout, 250mAout, SOT-23A-3
儒卓力:
**LDOVREG POS 3,0V 0,25A SOT23-3 **
Win Source:
IC REG LDO 3V 0.25A SOT23A-3
DeviceMart:
IC REG LDO 3V .25A SOT-23A
输出接口数 1
输入电压DC 13.2V max
输出电压 3 V
输出电流 250 mA
供电电流 5 μA
针脚数 3
耗散功率 253 mW
静态电流 0.002 mA
跌落电压 330 mV
热阻 110℃/W RθJC
输入电压Max 13.2 V
输入电压Min 2.7 V
输出电压Min 3 V
输出电流Max 250 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
电源电压Max 13.2 V
电源电压Min 2.7 V
输入电压 13.2 V
安装方式 Surface Mount
引脚数 3

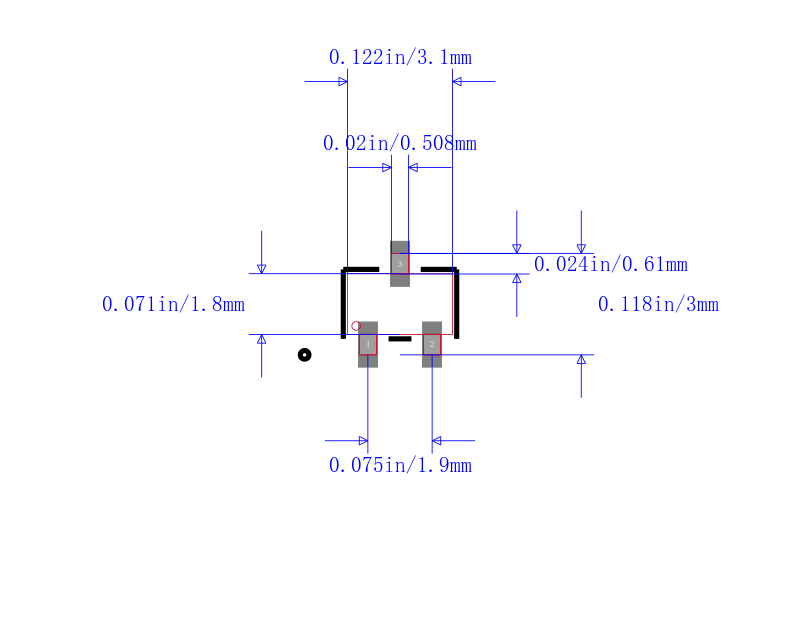

封装 SOT-23-3
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Sensing & Instrumentation, 电源管理, Power Management, 传感与仪器, Automotive, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1702T-3002E/CB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1702-3002E/TO 微芯 | 类似代替 | MCP1702T-3002E/CB和MCP1702-3002E/TO的区别 |
MCP1702T-3002E/MB 微芯 | 类似代替 | MCP1702T-3002E/CB和MCP1702T-3002E/MB的区别 |
