MICROCHIP MCP1701AT-5002I/CB 稳压器, 固定LDO, 12V输入, 380mV压差, 5V/250mA输出, SOT-23A-3

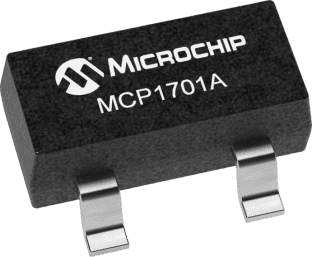

MCP1701A 低压降电压稳压器
欧时:

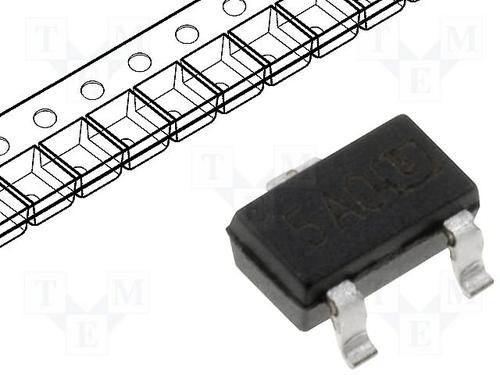

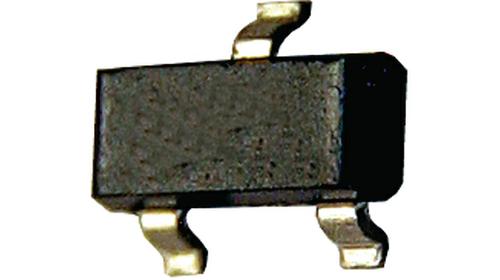

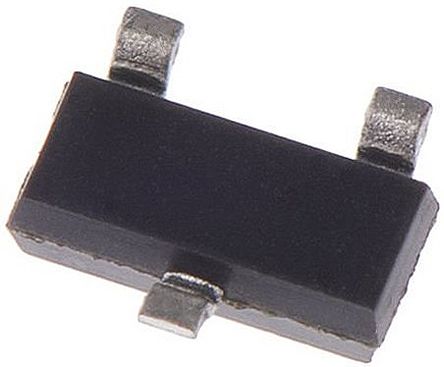

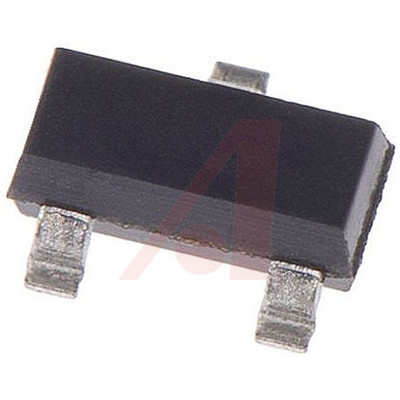

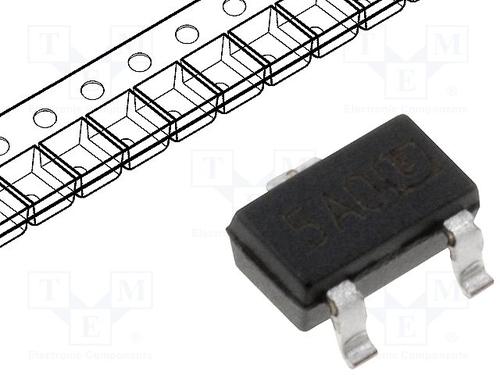

Microchip MCP1701AT-5002I/CB LDO 稳压器, 5 V输出, 250mA最大输出, ±2%精确度, 3引脚 SOT-23A封装
得捷:
IC REG LINEAR 5V 250MA SOT23A-3
立创商城:
MCP1701AT-5002I/CB
贸泽:
低压差稳压器 Low Iq 250mA LDO
e络盟:
稳压器, 固定LDO, 12V输入, 380mV压差, 5V/250mA输出, SOT-23A-3
艾睿:
This LDO MCP1701AT-5002I/CB linear regulator developed by Microchip Technology keeps the power stable! Its typical dropout voltage at current is 0.38@200mA V. This device has a maximum power dissipation of 150 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. It only needs a voltage that does not exceed 10 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 1.6% and line regulation of 0.3%/V. Its maximum power dissipation is 150 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.6@200mA V.
Allied Electronics:
Microchip MCP1701AT-5002I/CB, LDO Voltage Regulator, 250mA, 5V +/-2%, 3-Pin SOT-23A
安富利:
LDO Regulator Pos 5V 0.25A 3-Pin SOT-23A T/R
富昌:
MCP1701 系列 250 mA 5.0 V LDO 正电压稳压器 - SOT-23-3
TME:
Voltage regulator; LDO, fixed; 3.3V; 0.25A; SOT23A; SMD; Uoper:10V
Verical:
LDO Regulator Pos 5V 0.25A 3-Pin SOT-23A T/R
Newark:
# MICROCHIP MCP1701AT-5002I/CB IC, LDO REG, 250MA, 5.0V, SOT-23A
儒卓力:
**LDO.VREG POS 5V 0,25A SOT23-3 **
DeviceMart:
IC REG LDO 5V .25A SOT-23A
Win Source:
IC REG LDO 5V 0.25A SOT23A-3
工作电压 10 V
输出接口数 1
输入电压DC 10.0V max
输出电压 5 V
输出电流 250 mA
针脚数 3
耗散功率 150 mW
静态电流 0.002 mA
跌落电压 380 mV
输入电压Max 10 V
输出电压Min 5 V
输出电流Max 250 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
精度 ±2 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 3

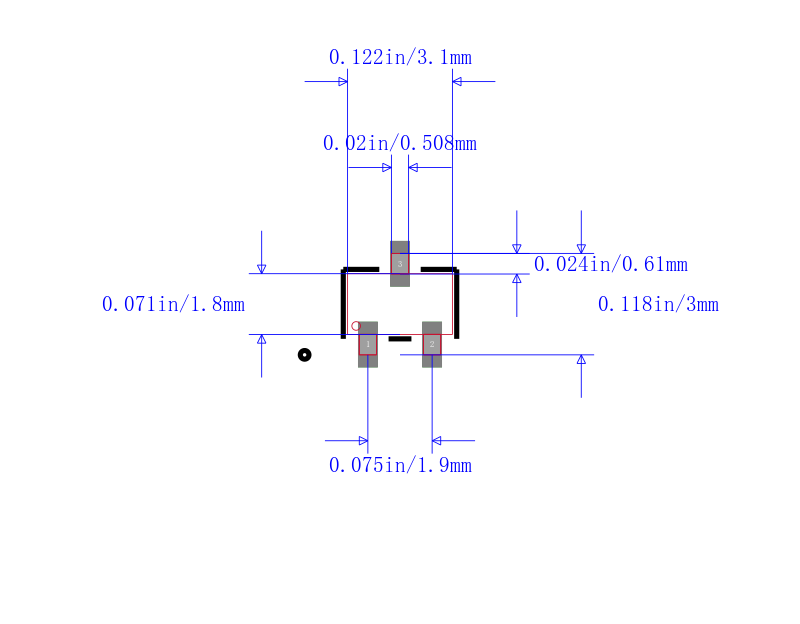

封装 SOT-23-3
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 Power Management, 工业, Industrial, 便携式器材, 安全, Consumer Electronics, Portable Devices, Security, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1701AT-5002I/CB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1701-5002I/TO 微芯 | 完全替代 | MCP1701AT-5002I/CB和MCP1701-5002I/TO的区别 |
MCP1701A-5002I/TO 微芯 | 类似代替 | MCP1701AT-5002I/CB和MCP1701A-5002I/TO的区别 |
LT1121CZ-5#PBF 凌力尔特 | 功能相似 | MCP1701AT-5002I/CB和LT1121CZ-5#PBF的区别 |
