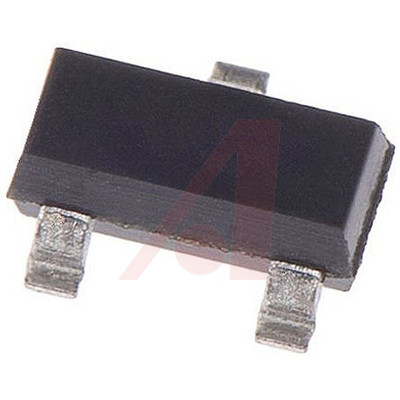

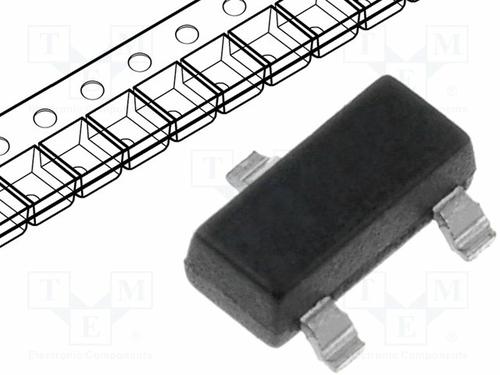

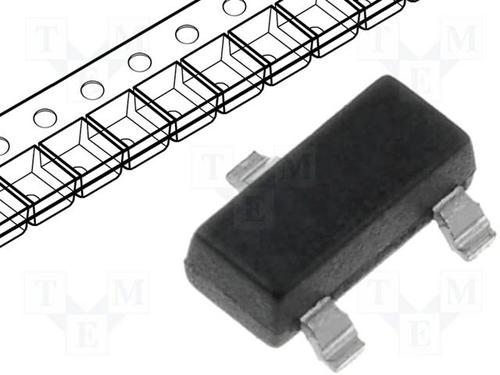

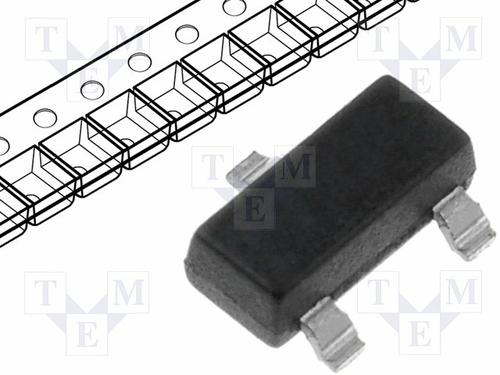

MCP101 系列 3.15 V 150 ms 微控制器监控电路 - SOT-23-3
MCP101 微控制器监控和重置电路
### 监控和重置电路 -
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-3
欧时:
Microchip MCP101T-315I/TT 电压监控器, 3 至 3.15 V监控电压, 推挽式, 3引脚 SOT-23封装
立创商城:
MCP101T-315I/TT
e络盟:
# MICROCHIP MCP101T-315I/TT 芯片, 监控电路
艾睿:
Take control of a circuit with a failed core processor with the MCP101T-315I/TT microprocessor supervisory circuit from Microchip Technology. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 3.075 V, with a minimum of 3 V and a maximum of 3.15 V.
Allied Electronics:
Microchip MCP101T-315I/TT, Voltage Supervisor 3 - 3.15 V, 3-Pin SOT-23
安富利:
Processor Supervisor 3.075V 3V/3.3V/5V 3-Pin SOT-23 T/R
Chip1Stop:
Processor Supervisor 3.075V 3V/3.3V/5V 3-Pin SOT-23 T/R
TME:
Supervisor Integrated Circuit; power on reset monitor PoR
Verical:
Processor Supervisor 3.075V 1 Active High/Push-Pull 3-Pin SOT-23 T/R
Win Source:
IC SUPERVISOR ACTIVE HI SOT23-3
电源电压DC 1.00V min
工作电压 1V ~ 5.5V
供电电流 0.06 mA
针脚数 3
静态电流 45 µA
阈值电压 3.075 V
复位电压Min 3 V
复位电压Max 3.15 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

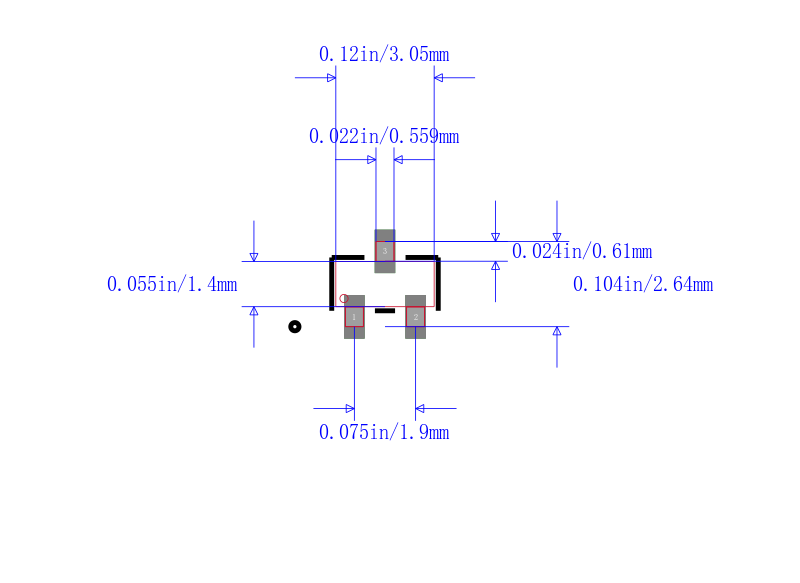

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP101T-315I/TT Microchip 微芯 | 当前型号 | 当前型号 |
STM1817TWX7F 意法半导体 | 功能相似 | MCP101T-315I/TT和STM1817TWX7F的区别 |
