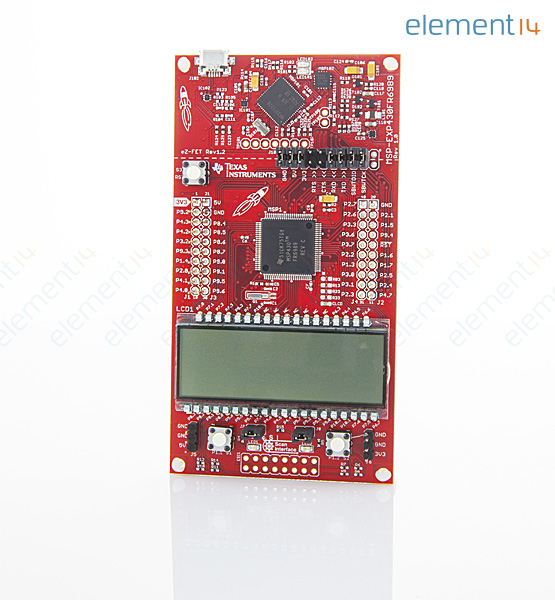

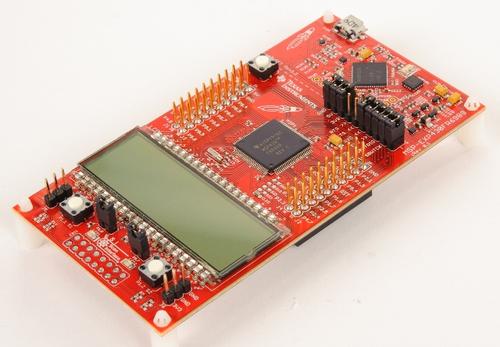

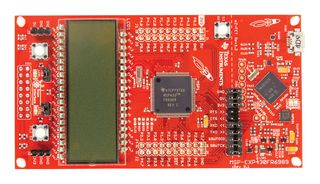

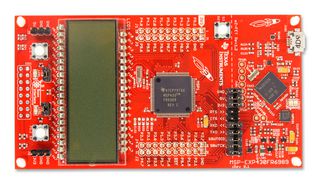

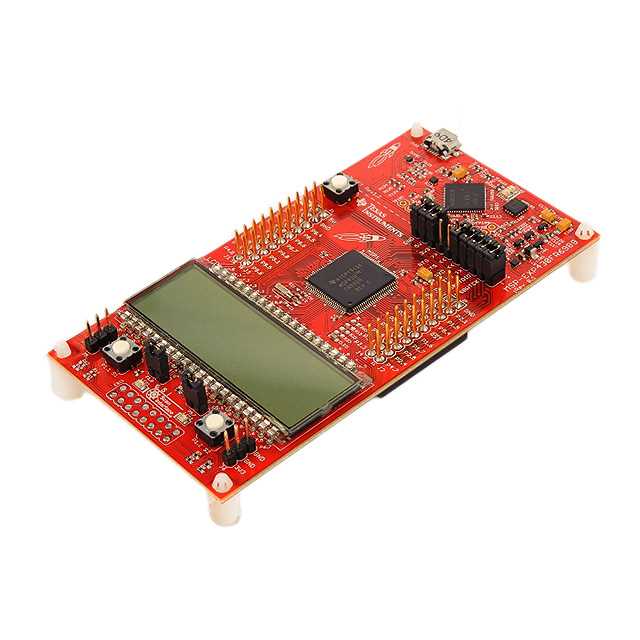

TEXAS INSTRUMENTS MSP-EXP430FR6989 开发板, MSP430FR6989 FRAM Launchpad, 段位液晶屏显示屏, 能量追踪++技术
The LaunchPad Development Kit is an easy-to-use Evaluation Module EVM for the MSP40FR6989 microcontroller MCU. It contains everything needed to start developing on the ultra-low-power MSP430FRx FRAM microcontroller platform, including on-board emulation for programming, debugging and energy measurements. The board features on-board buttons and LEDs for quick integration of a simple user interface as well as a Liquid Crystal Display LCD display which showcases the integrated driver that can drive up to 320 segments. It also offers direct access to the Extended Scan Interface, which is a dual analog front-end AFE created for low-power rotation detection. The MSP430FR6989 device features ultra-low power consumption, 128 KB of embedded FRAM Ferroelectric Random Access Memory, a non-volatile memory known for its ultra-low power, high endurance and high speed write access.
- .
- EnergyTrace Technology for ultra-low-power debugging
- .
- 40 pin LaunchPad standard leveraging the BoosterPack ecosystem
- .
- 128 KB FRAM
- .
- 100 uA/MHz active mode and 350 nA standby with RTC and 3.7 pF crystal
- .
- Certified ULPBench score of 109
- .
- 16-Bit RISC architecture up to 8-MHz FRAM access/ 16MHz system clock speed
- .
- Onboard eZ-FET emulation
- .
- 2 buttons and 2 LEDs for User Interaction
- .
- 320-segment LCD controller
- .
- 83 GPIO
