MSP430G2101IN14

MSP430G2x 超低功率微控制器，Texas Instruments**MSP430G2xx - 值线路系列**具有一个 16MHz 的 CPU，可提供超低功率性能，同时为您的设计提供低成本选项。高达16MHz CPU 速度 1.8 至 3.6V 操作 多达 56KB 闪存 多达 4KB RAM 内存 广泛的高性能外围设备 有些线路具有独特的电容式触摸传感 IO 端口 0.1μA RAM 保留 0.4μA 待机模式 220μA/MHz 有源 待机模式超快唤醒速度，时间少于 ### MSP430 微控制器，Texas Instruments**MSP430 平台**是来自 Texas Instruments 的混合信号和超低功率微控制器系列。 16 位 RISC 体系结构特别适用于无线、低功耗工业和便携式应用。 此建立范围由于易于使用以及广泛的开发工具和支持套件，具有坚固且常用的位置。 MSP430 组合包括 400 多台设备，从 MSP430 超值型到创新型、带嵌入式 FRAM 存储器的高集成微控制器不等。此广泛系列的产品提供适用于多种设计和应用的集成。 高性能的外设包括 USB、RF、LCD 控制器和 Sigma-Delta ADC 。 这使得设计人员能够为多种低功耗应用找到适当的 MSP430 设备。

description

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life inportable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, andconstant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1µs.

The MSP430G2x01/11 series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. The MSP430G2x11 family members have a versatile analog comparator. For configuration details seeTable1. Typical applications include low-cost sensor systems thatcapture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.

Low Supply Voltage Range 1.8 V to 3.6 V

Ultralow Power Consumption

\- Active Mode: 220 µAat1MHz,2.2V

\- Standby Mode: 0.5 µA

\- Off Mode RAM Retention: 0.1 µA

Five Power-Saving Modes

Ultrafast Wake-Up From Standby Mode in Less Than 1µs

16-Bit RISC Architecture, 62.5 ns Instruction Cycle Time

Basic Clock Module Configurations:

\- Internal Frequencies up to 16 MHz With One Calibrated Frequency

\- Internal Very Low Power LF Oscillator

\- 32-kHz Crystal

\- External Digital Clock Source

16-Bit Timer_A With Two Capture/Compare Registers

Brownout Detector

On-Chip Comparator for Analog Signal Compare Function or Slope A/D See Table 1

Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse

On-Chip Emulation Logic With Spy-Bi-Wire Interface

Family Members details see Table 1

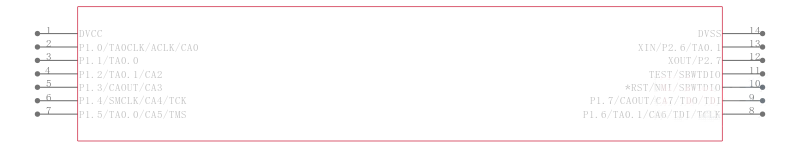

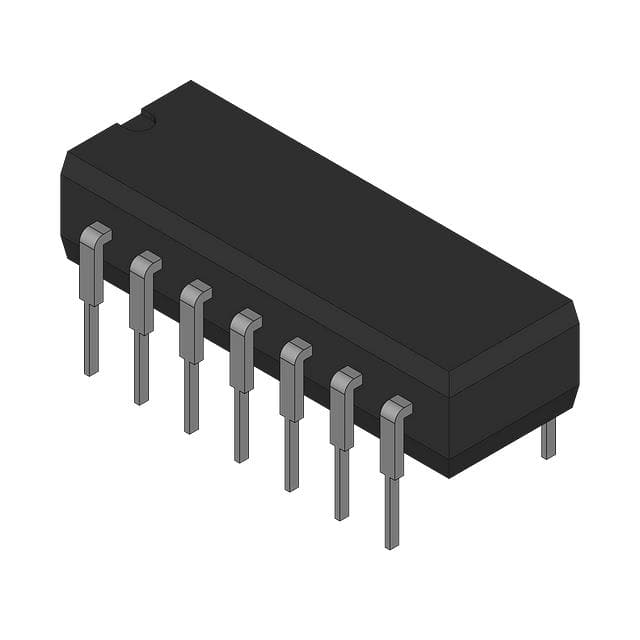

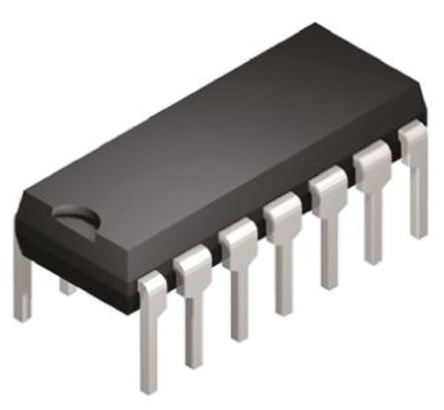

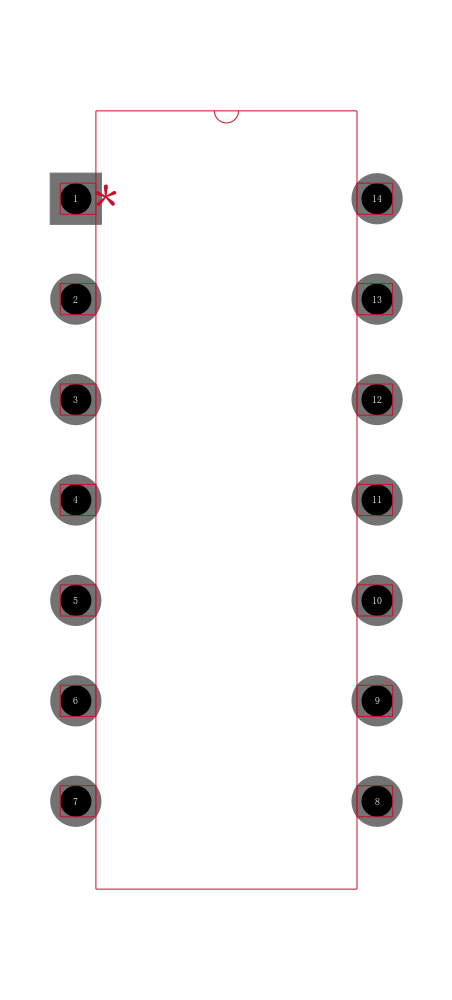

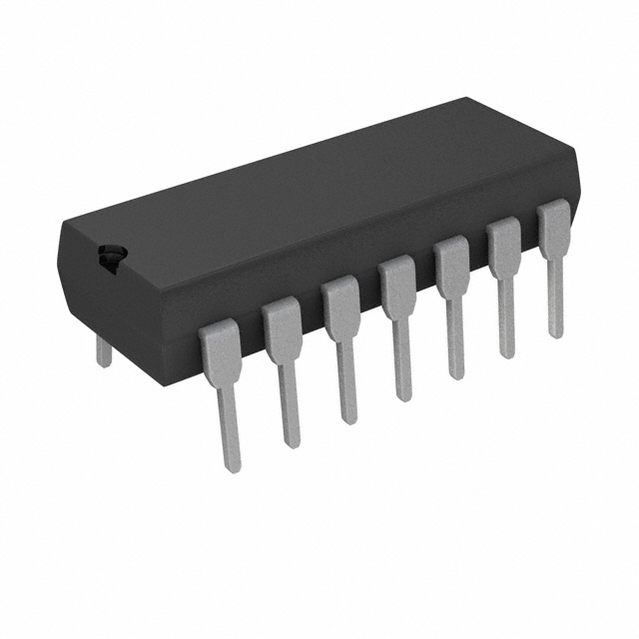

Available in a 14-Pin Plastic Small-Outline Thin Package TSSOP, 14-Pin Plastic Dual Inline Package PDIP, and 16-Pin QFN

For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide
