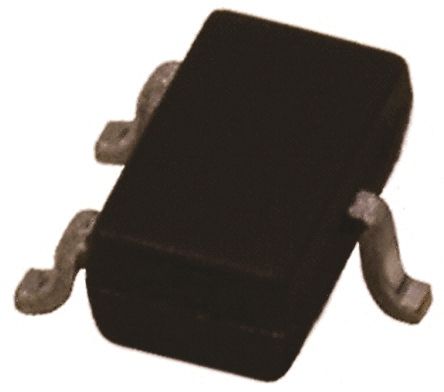

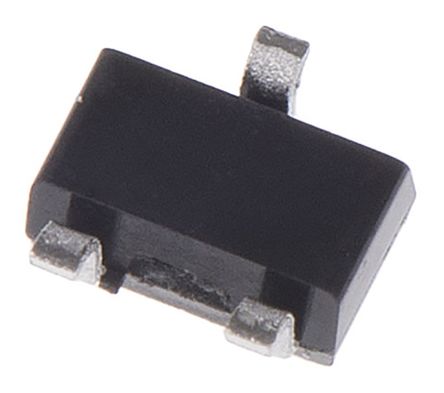

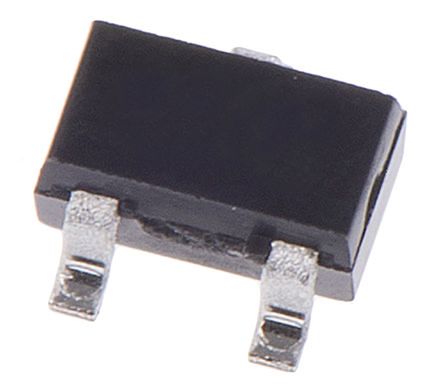

M1MA142WAT1 系列 80 V 150 mA 共阳极 硅 双 开关二极管 - SC-70
小信号开关,
### 标准
带 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
得捷:
DIODE ARRAY GP 80V 100MA SC70-3
欧时:
ON Semiconductor M1MA142WAT1G 双 开关二极管, Iout=100 mA, 150 mA, Vrev=80V, 1频率范围, 3引脚
贸泽:
二极管 - 通用,功率,开关 80V 100mA
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a small signal switching diode M1MA142WAT1G rectifier from ON Semiconductor. Its maximum power dissipation is 150 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a dual common anode configuration. This rectifier has an operating temperature range of -55 °C to 150 °C. Its peak non-repetitive surge current is 0.75 A, while its maximum continuous forward current is 0.15 A.
Allied Electronics:
M1MA142WAT1G Dual Switching Diode, Common Anode, 100 mA, 150 mA 80V, 3-Pin SC-70
安富利:
Diode Small Signal Switching 80V 0.15A 3-Pin SC-70 T/R
Chip1Stop:
Diode Small Signal Switching 80V 0.15A Automotive 3-Pin SC-70 T/R
TME:
Diode: rectifying; SMD; 80V; 0.15A; 10ns; 150mW; Package: reel, tape
Verical:
Rectifier Diode Small Signal Switching 80V 0.15A 10ns 3-Pin SC-70 T/R
Win Source:
DIODE ARRAY GP 80V 100MA SC70-3
额定电压DC 80.0 V
额定电流 100 mA
无卤素状态 Halogen Free
正向电压 1.2V @100mA
耗散功率 150 mW
反向恢复时间 10 ns
正向电流 0.15 A
正向电压Max 1.2V @100mA
正向电流Max 100 mA
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 150℃ Max
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
长度 2.1 mm
宽度 1.24 mm
高度 0.85 mm
封装 SC-70-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M1MA142WAT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
M1MA142KT1 安森美 | 类似代替 | M1MA142WAT1G和M1MA142KT1的区别 |
M1MA142WAT1 安森美 | 类似代替 | M1MA142WAT1G和M1MA142WAT1的区别 |
M1MA142KT1G 安森美 | 功能相似 | M1MA142WAT1G和M1MA142KT1G的区别 |
